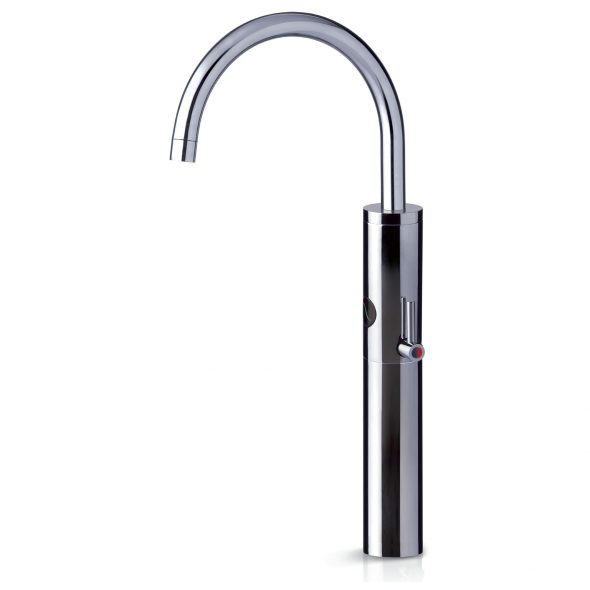

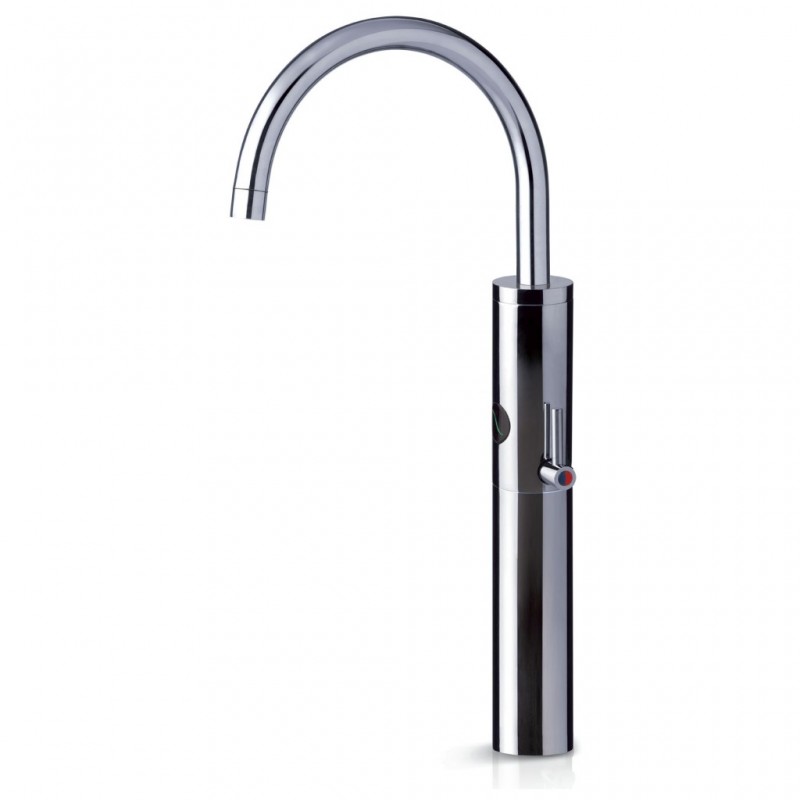

Arco Plus RZ

General Details
Electronic tap with anti-scratch and anti-limescale DMP sensor
4.5V waterproof electronic circuit
Sensor beam adjustable from 5 to 35 cm
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Body in polished chrome-plated brass, with extensions starting from 20 mm
Various spout lengths available
With built-in mixer or for cold/pre-mixed water
Continuous flow mode
Temporary block function
Anti-flooding automatic stop after 3 minutes
Standard water flow: 6 litres/minute. Optional: 1.9 or 3 litres/minute
Stop taps with in-built stainless steel filters and non-return valves

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer

Model and feeding

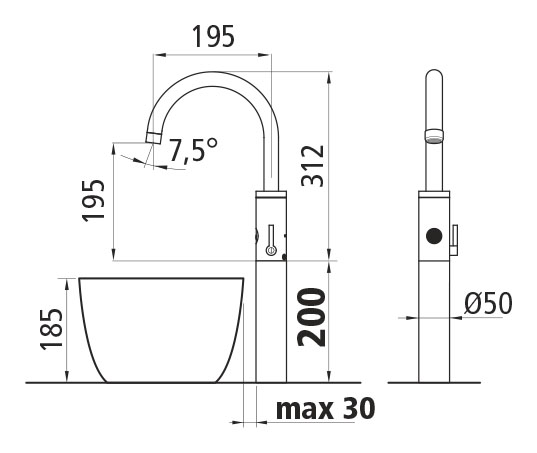

  1. ArcoMix Plus RZ N - 200 mm extension with hot/cold water mixer
    ArcoMix Plus RZ N
    Power: Electricity or battery
    Colours: Polished chrome
    Variants: with or without multi-function button
    * measures in millimeters

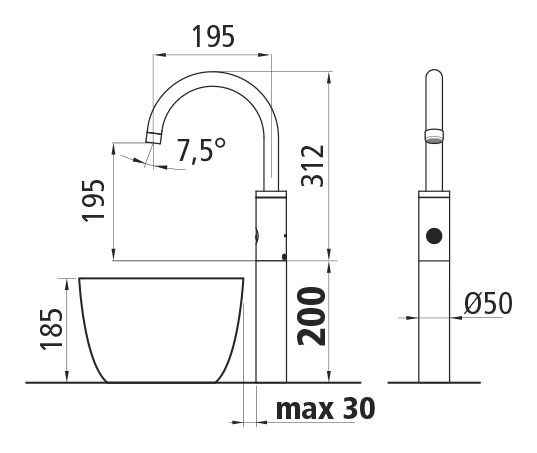

  2. Arco Plus RZ N - 200 mm extension for cold or pre-mixed water
    Arco Plus RZ N
    Power: Electricity or battery
    Colours: Polished chrome
    Variants: with or without multi-function button
    * measures in millimeters

  3. ArcoMix Plus RZ N - 170 mm extension with hot/cold water mixer
    ArcoMix Plus RZ N
    Power: Electricity or battery
    Colours: Polished chrome
    Variants: with or without multi-function button
    * measures in millimeters

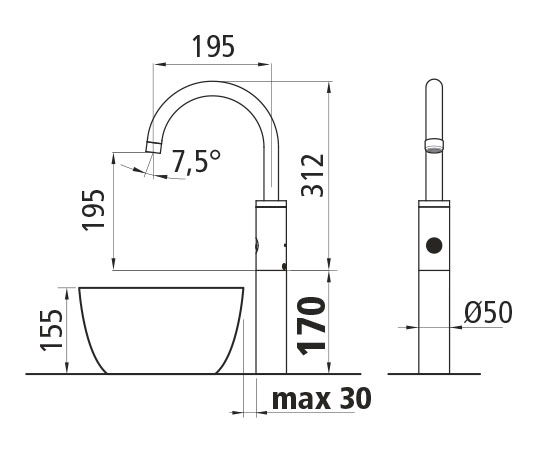

  4. Arco Plus RZ N - 170 mm extension for cold or pre-mixed water
    Arco Plus RZ N
    Power: Electricity or battery
    Colours: Polished chrome
    Variants: with or without multi-function button
    * measures in millimeters

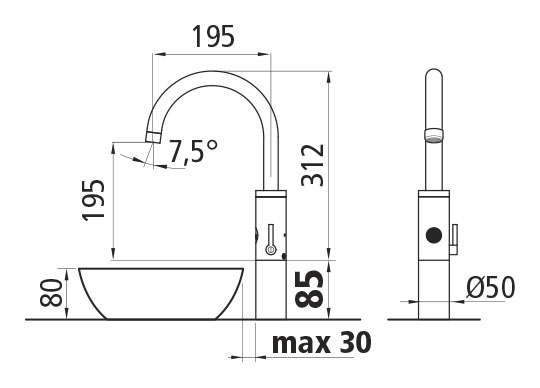

  5. ArcoMix Plus RZ N - 85 mm extension with hot/cold water mixer
    ArcoMix Plus RZ N
    Power: Electricity or battery
    Colours: Polished chrome
    Variants: with or without multi-function button
    * measures in millimeters

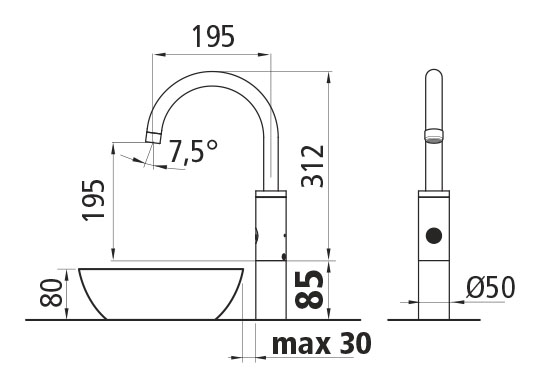

  6. Arco Plus RZ N - 85 mm extension for cold or pre-mixed water
    Arco Plus RZ N
    Power: Electricity or battery
    Colours: Polished chrome
    Variants: Con o senza pulsante multifunzione
    * measures in millimeters

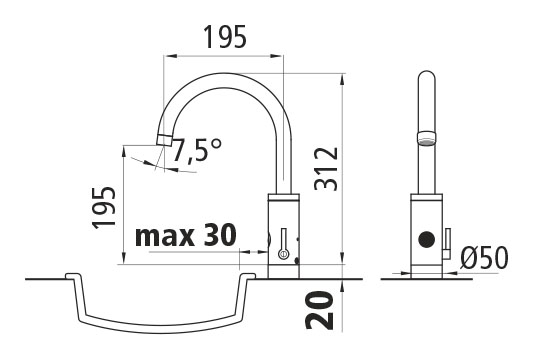

  7. ArcoMix Plus RZ N - 20 mm extension with hot/cold water mixer
    ArcoMix Plus RZ N
    Power: Electricity or battery
    Colours: Polished chrome
    Variants: with or without multi-function button
    * measures in millimeters

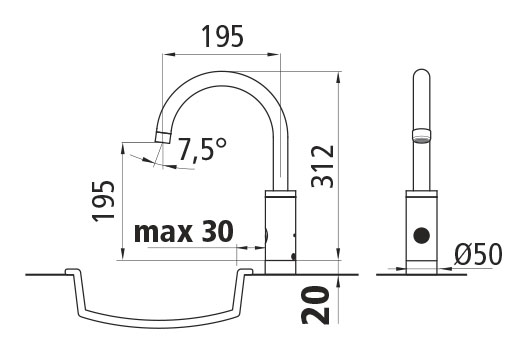

  8. Arco Plus RZ N - 20 mm extension for cold or pre-mixed water
    Arco Plus RZ N
    Power: Electricity or battery
    Colours: Polished chrome
    Variants: with or without multi-function button
    * measures in millimeters

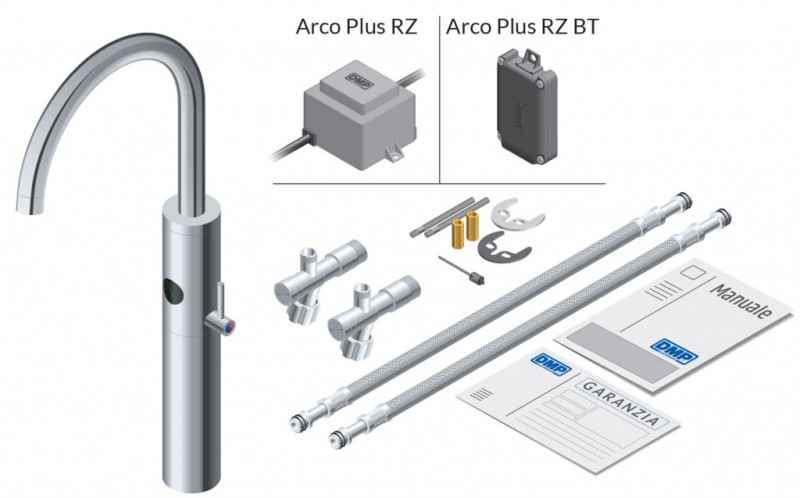

Pack contents
Contents of the package

Contents of the package
