General Details
Electronic tap with anti-scratch and anti-limescale DMP sensor
Three-photocell operation for 120° beam
All-in-one: all components are inside the tap
4.5V waterproof electronic circuit
Sensor beam adjustable from 5 to 20 cm
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Polished, satin or white chrome-plated metal body
With built-in, under sink mixer or for pre-mixed water
Version with mixer vandal-proof safety cap
Anti-flooding automatic stop after 90 seconds
Standard water flow: 6 litres/minute. Optional: 1.9 or 3 litres/minute
Stop taps with in-built stainless steel filters and non-return valves

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer

Model and feeding

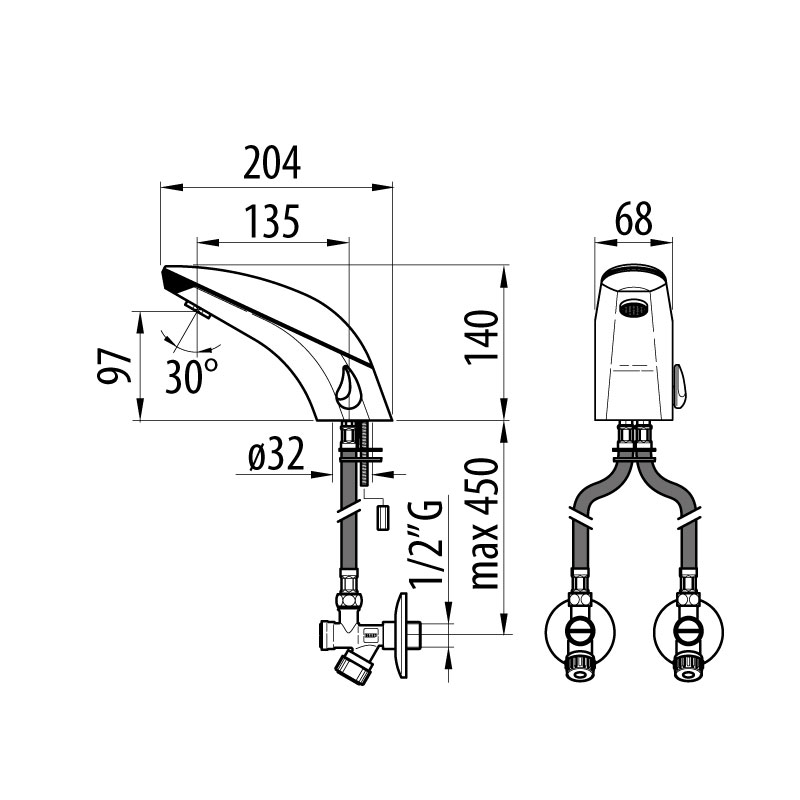

  1. Class 20 with hot/cold water mixer
    Class 20 metal
    Power: Electricity or battery
    Colours: Polished chrome, Satin chrome, White

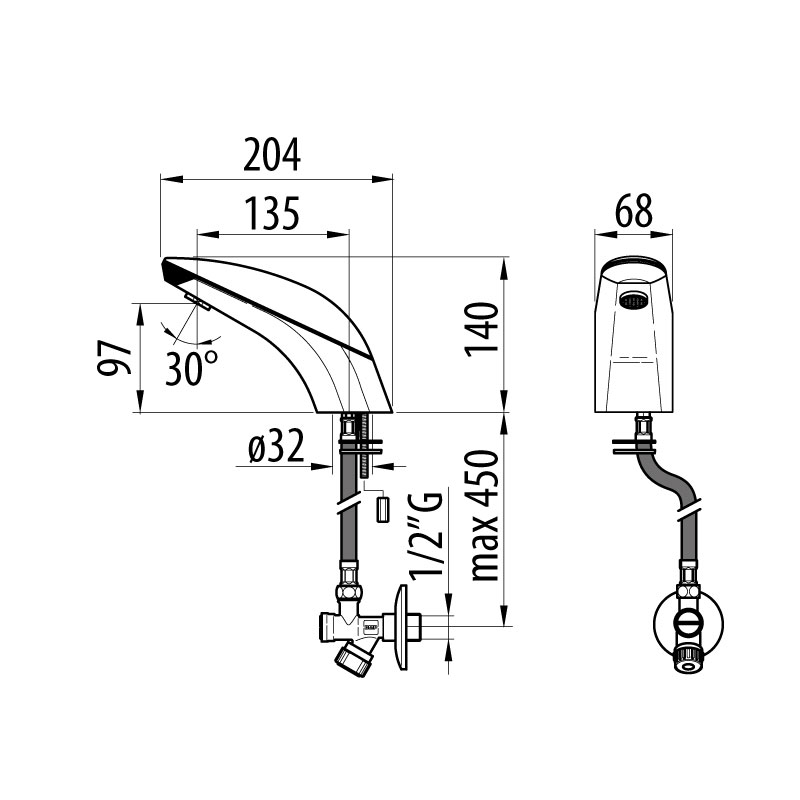

  2. Class 10 for cold or pre-mixed water
    Class 10 metal
    Power: Electricity or battery
    Colours: Polished chrome, Satin chrome, White

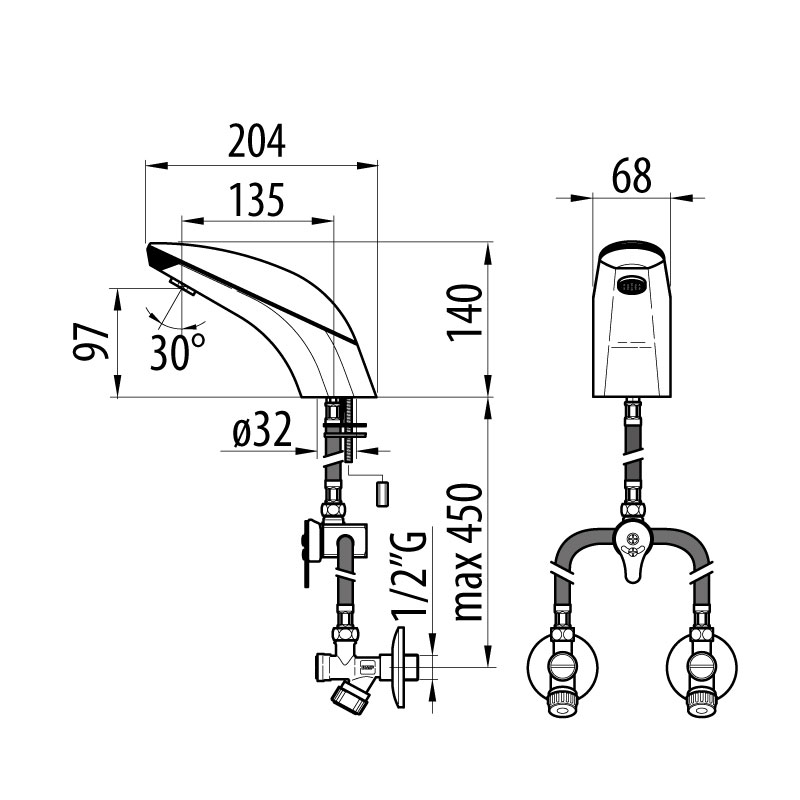

  3. Class 30 with under sink mixer
    Class 30 metal
    Power: Electricity or battery
    Colours: Polished chrome, Satin chrome, White
    Notes: The mixer handle can be blocked after the adjustment

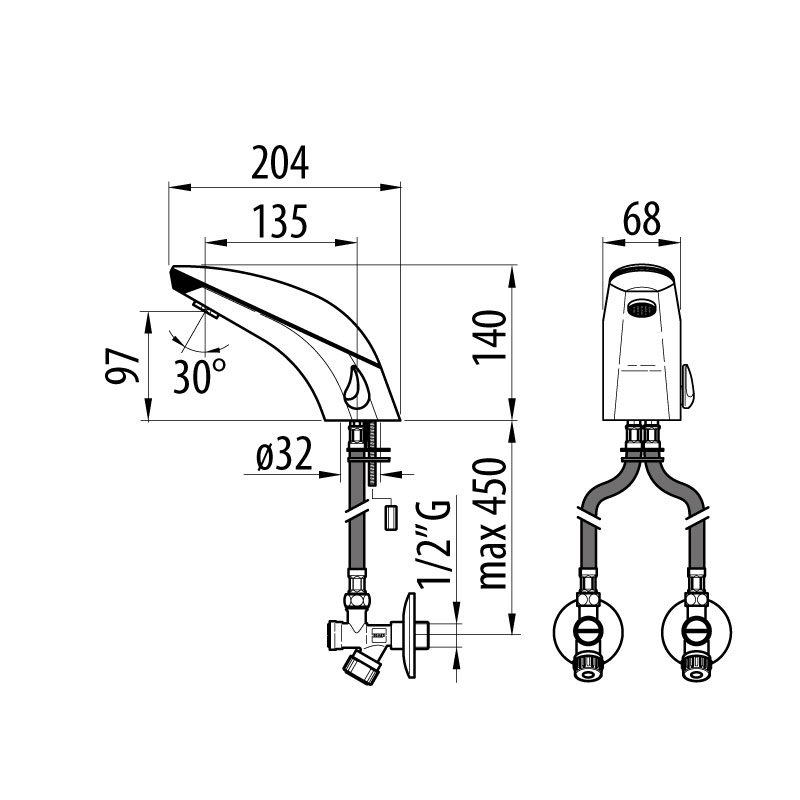

  4. Class 20 TL with internal safety mixer
    Class 20 TL metal
    Power: Electricity or battery
    Colours: Polished chrome, Satin chrome, White
    Notes: Mixer with vandal-proof safety side cap
Data Sheet (only for registered users)

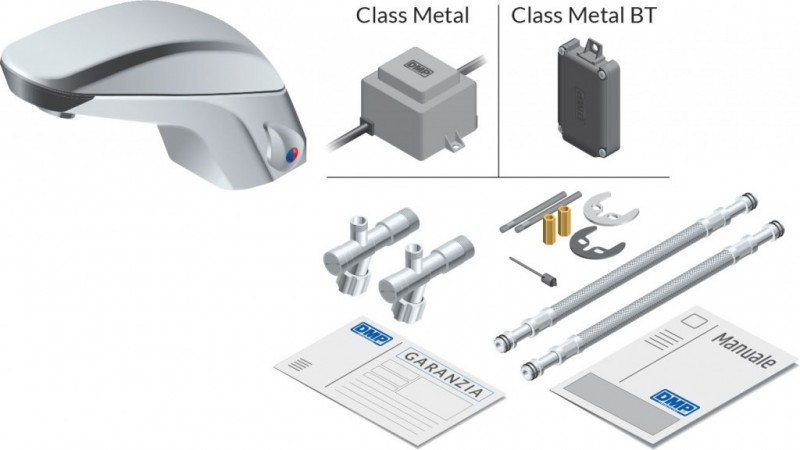

Pack contents
