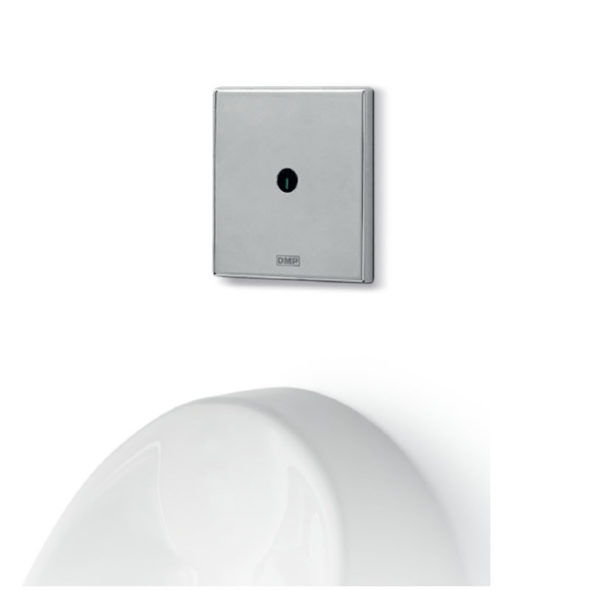

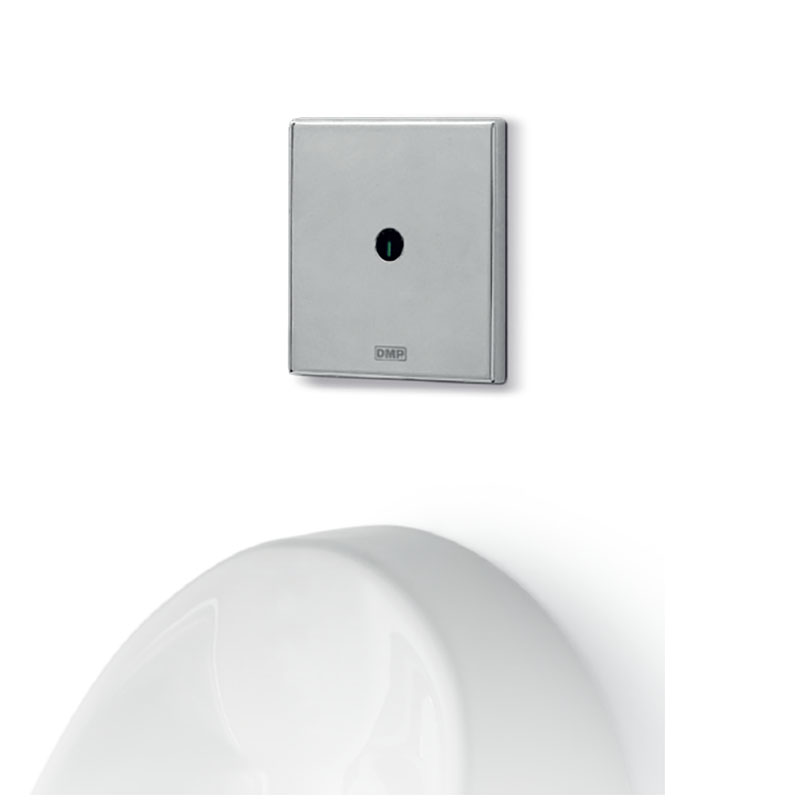

Fin

General Details
Recessed electronic system for single urinal
AISI 304 polished stainless steel plate
Scratch-proof DMP Infrared Sensors protected against calcium deposits
4.5V waterproof electronic circuit
Sensor beam adjustable from 20 to 80 cm
Microchip programmed to control all functions
Function for manual use that can be activated when no power is available
Adjustable water quantity
Water flush with 2 methods:
– on approach
– on leaving
Antibacterial automatic courtesy flush every 12 hours
Stop tap with 0.2 mm mesh stainless steel filters

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer

Model and feeding
  1. Fin

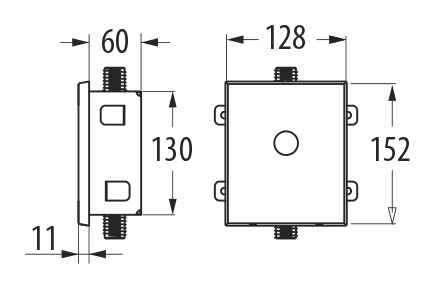

    Fin 200
    Power: Electricity or battery
    Plate color: Polished chrome
    Notes: 2 sec. initial flow and flush on leaving.
    * measures in millimeters

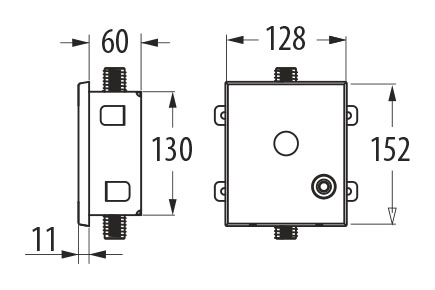

    Fin 300
    Power: Electricity or battery
    Plate color: Polished chrome
    Notes: With manual function. 2 sec. initial flow and flush on leaving.
    * measures in millimeters

  2. Accessories

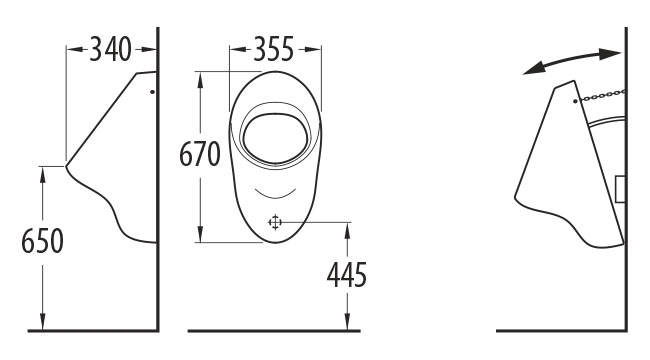

    DH-01 series urinal
    White ceramic
    With tilting system for maintenance and with articulated syphon
    * measures in millimeters

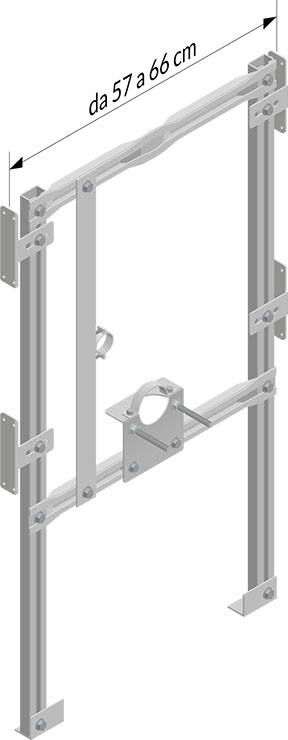

    Metal frame
    for plasterboard walls
    for Fin
    * measures in millimeters

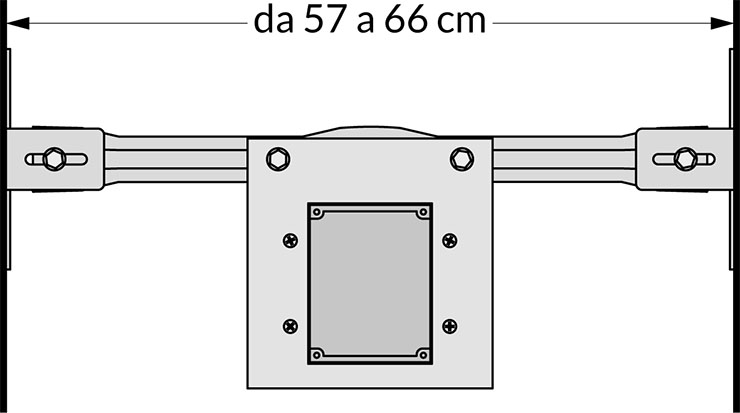

    Metal frame
    for plasterboard walls
    for DH-01
    * measures in millimeters

Data Sheet (only for registered users)

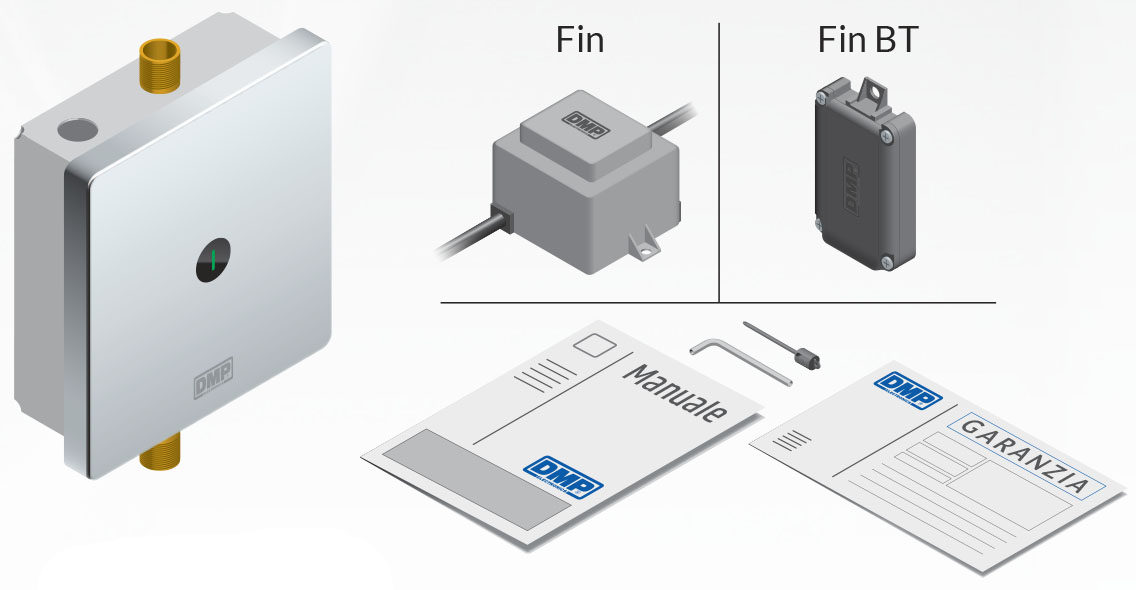

Pack contents
Contents of the package

Contents of the package
