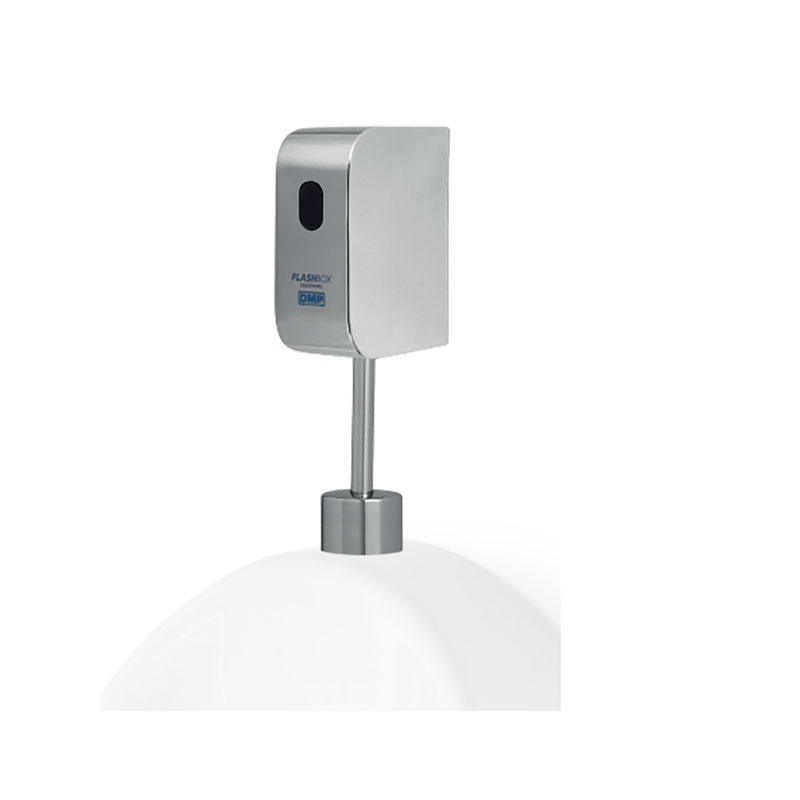

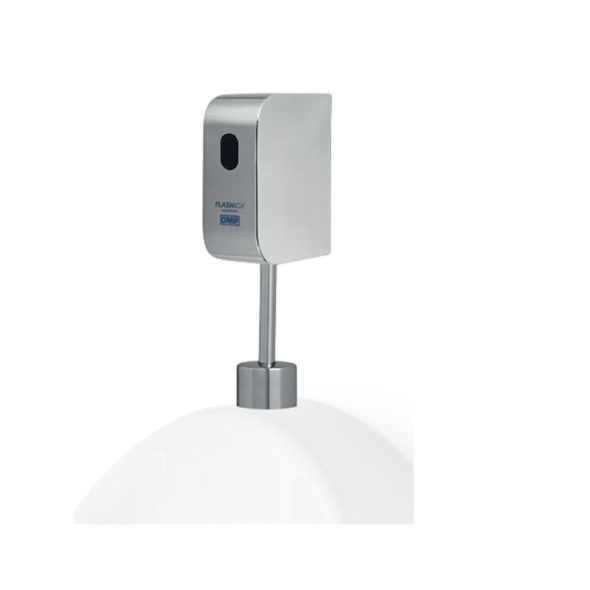

Flash Box

General Details
External electronic system for single urinal
Scratch-proof DMP Infrared Sensors protected against calcium deposits
4.5V waterproof electronic circuit
Sensor beam adjustable from 20 to 80 cm
Functions optimized using DMP integrated software
External polished AISI 304 stainless steel
Function for manual use that can be activated when no power is available
Water flush on approach or on leaving
Antibacterial automatic courtesy flush every 12 hours
Stop tap with 0.2 mm mesh stainless steel filters

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 12Vdc safety transformer

Model and feeding
  1. Flash Box

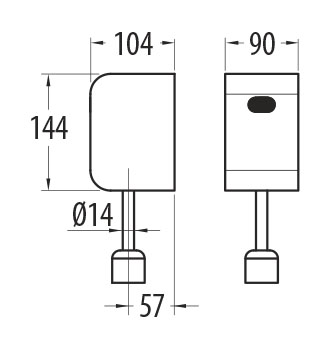

    Flash Box 200 BT
    Power: Battery
    Plate colour: Polished chrome, White
    Notes: On approach.
    * measures in millimeters

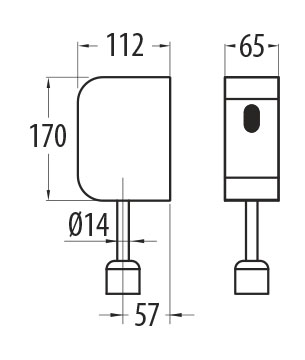

    Flash Box 200
    Power: Electricity
    Plate colour: Polished chrome, White
    Notes: On approach.
    * measures in millimeters

    Flash Box 300 BT
    Power: Battery
    Plate colour: Polished chrome, White
    Notes: With manual function. On approach.
    * measures in millimeters

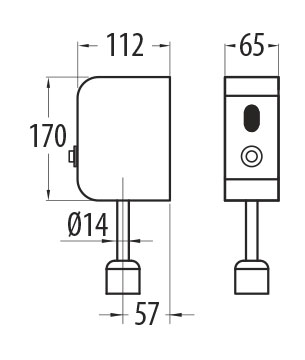

    Flash Box 300
    Power: Electricity
    Plate colour: Polished chrome, White
    Notes: With manual function. On approach.
    * measures in millimeters

  2. Accessories
    Metal frame
    for plasterboard walls
    for Flush Comp
    and Flash Box
    * measures in millimeters

Data Sheet (only for registered users)

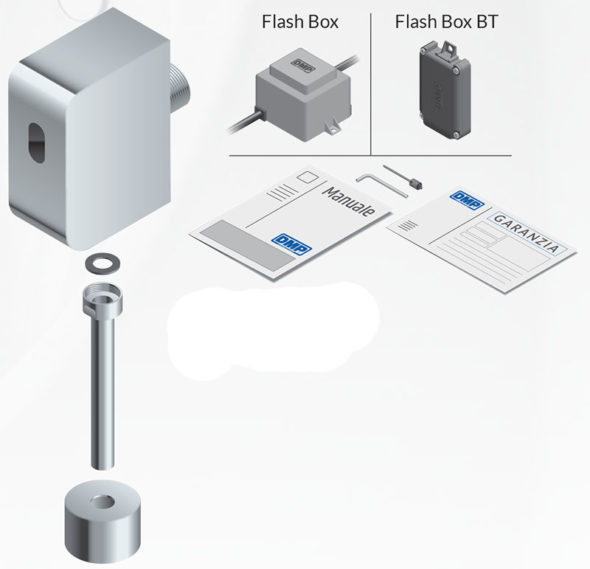

Pack contents
Contents of the package

Contents of the package
