Flussometri WC

General Details

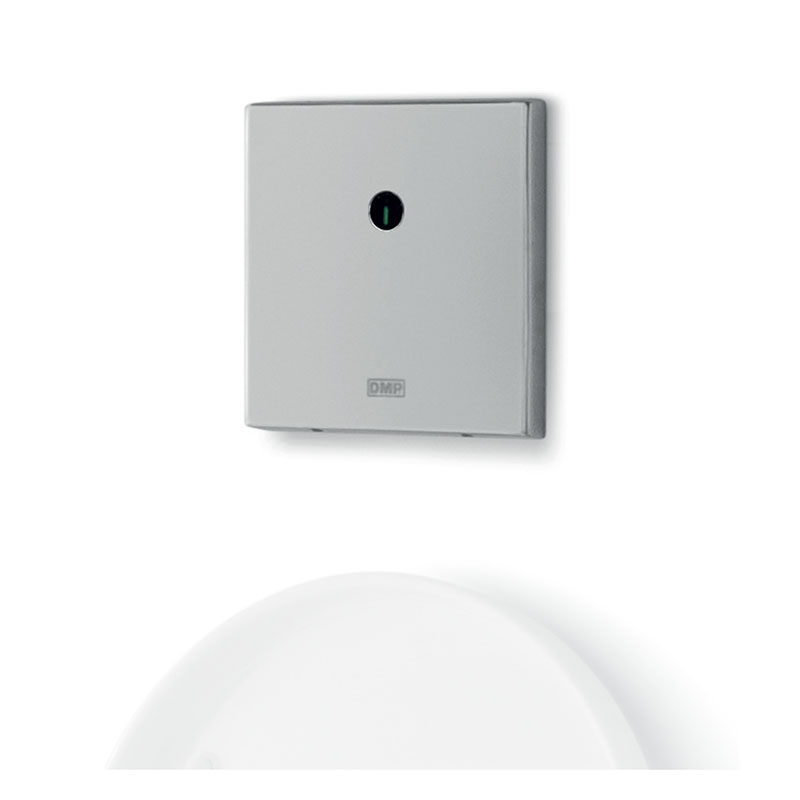

Recessed electronic flush valve for single WC
“DMP Infrared Sensors” in scratch-proof and calcium-resistant material
AISI 304 stainless steel external plate and concealed box
Built-in waterproof electronic circuit
Sensor beam tilted by 15° and adjustable from 20 to 80 cm
Microchip programmed to control all functions
Function for manual use that can be activated in case of power failure
With or without pre-flush before main flush.
With stop valve and in-built filter (mod. FS)
Version with 3 or 6 litre differentiated flush (mod. 36)
Option: metal frame for hanging WCs
Option: sensors with hand approach activation
Anti-corrosion and anti-water hammer self-cleaning piston
Adjustable flush from 2 to 8 seconds
Antibacterial automatic courtesy flush every 12 hours

For mains models
230Vac -14Vac safety transformer

Model and feeding
  1. M Fix
    M Fix 212
    Power: Electricity
    Plate colour: Polished chrome, Satin chrome
    Notes:
    Without pre-flush. Complete flushing takes place one second after the person leaves
    M Fix 312
    Power: Electricity
    Plate colour: Polished chrome, Satin chrome
    Notes:
    Without pre-flush. Complete flushing takes place one second after the person leaves. With manual function.

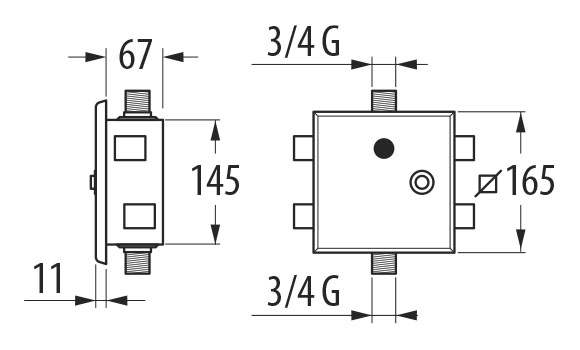

    * measures in millimeters

  2. M Lux
    M Lux 212
    Power: Electricity
    Plate colour: Polished chrome, Satin chrome
    Notes:
    With intermittent pre-flush before main flush. The pre-flush activates intermittently (every 25 seconds) as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves
    M Lux 312
    Power: Electricity
    Plate colour: Polished chrome, Satin chrome
    Notes:
    With intermittent pre-flush before main flush. The pre-flush activates intermittently (every 25 seconds) as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves. With manual function
    * measures in millimeters

  3. M Fix FS with filter/stop
    M Fix 212 FS
    Power: Electricity
    Plate colour: Polished chrome, Satin chrome
    Note:
    Without pre-flush. Complete flushing takes place one second after the person leaves
    M Fix 312 FS
    Power: Electricity
    Plate colour: Polished chrome, Satin chrome
    Notes:
    Without pre-flush. Complete flushing takes place one second after the person leaves. With manual function
    * measures in millimeters

  4. M Lux FS with filter/stop
    M Lux 212 FS
    Power: Electricity
    Plate colour: Polished chrome, Satin chrome
    Notes:
    With intermittent pre-flush before main flush. The pre-flush activates intermittently (every 25 seconds) as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves
    M Lux 312 FS
    Power: Electricity
    Plate colour: Polished chrome, Satin chrome
    Notes:
    With intermittent pre-flush before main flush. The pre-flush activates intermittently (every 25 seconds) as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves. With manual function
    * misure in millimetri

  5. M Fix 36 with 3/6 litre smart flushing
    M Fix 36212
    Power: Electricity
    Plate colour: Polished chrome, Satin chrome
    Smart flushing: within 90 seconds’ stay, it activates the 3 litre flush, after 90 second the 6 litre one.
    Notes:
    Without pre-flush. Complete flushing takes place one second after the person leaves
    M Fix 36312
    Power: Electricity
    Plate colour: Polished chrome, Satin chrome
    Smart flushing: within 90 seconds’ stay, it activates the 3 litre flush, after 90 second the 6 litre one.
    Notes:
    Without pre-flush. Complete flushing takes place one second after the person leaves. With manual function
    * measures in millimeters

  6. M Fix 36 with 3/6 litre smart flushing and filter/stop
    M Fix 36212 FS
    Power: Electricity
    Plate colour: Polished chrome, Satin chrome
    Smart flushing: within 90 seconds’ stay, it activates the 3 litre flush, after 90 second the 6 litre one.
    Notes:
    Without pre-flush. Complete flushing takes place one second after the person leaves
    M Fix 36312 FS
    Power: Electricity
    Plate colour: Polished chrome, Satin chrome
    Smart flushing: within 90 seconds’ stay, it activates the 3 litre flush, after 90 second the 6 litre one.
    Notes:
    Without pre-flush. Complete flushing takes place one second after the person leaves. With manual function

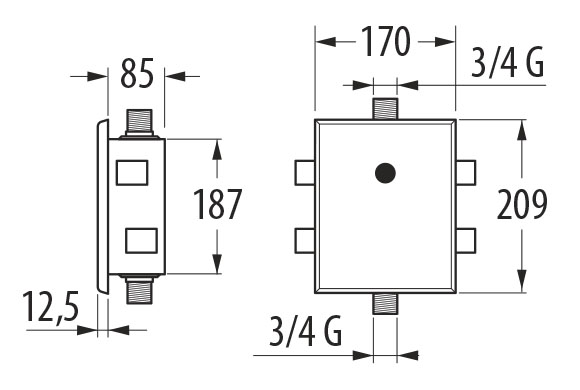

    * measures in millimeters

  7. Accessories

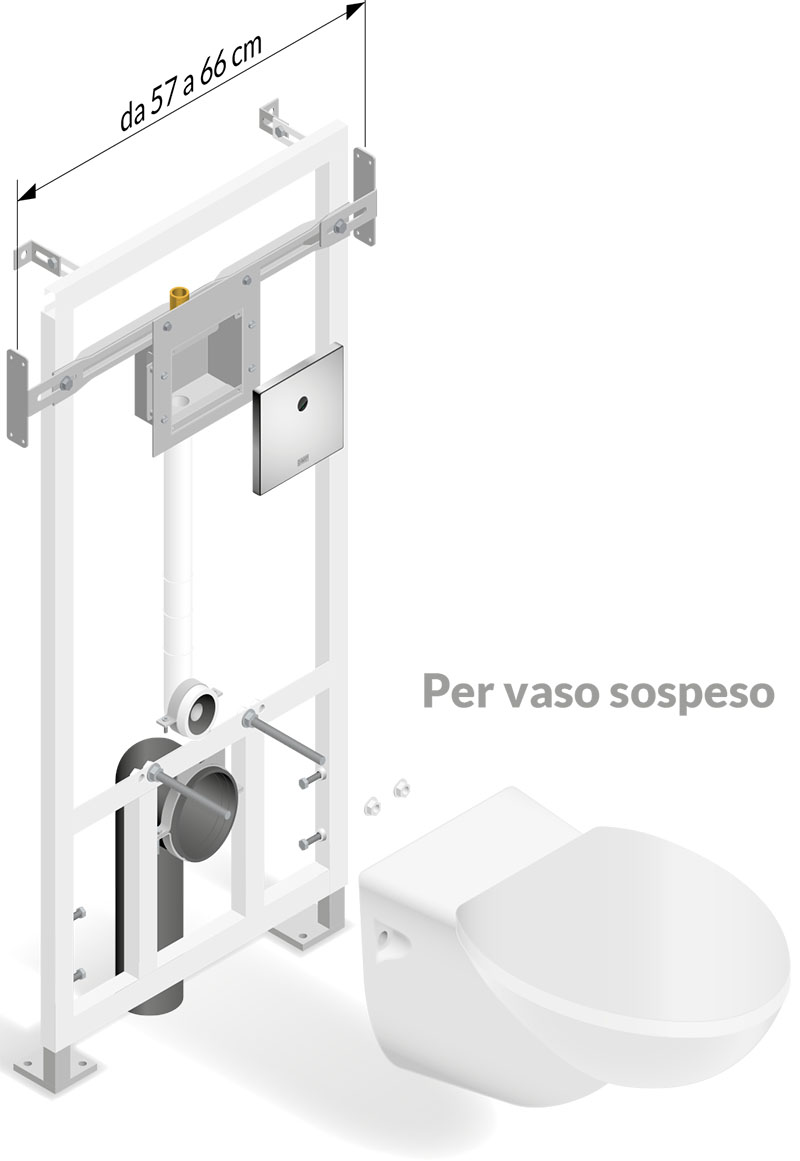

    Metal frame
    for plasterboard walls
    for M Fix, M Lux, M Fix 36
    * measures in millimeters

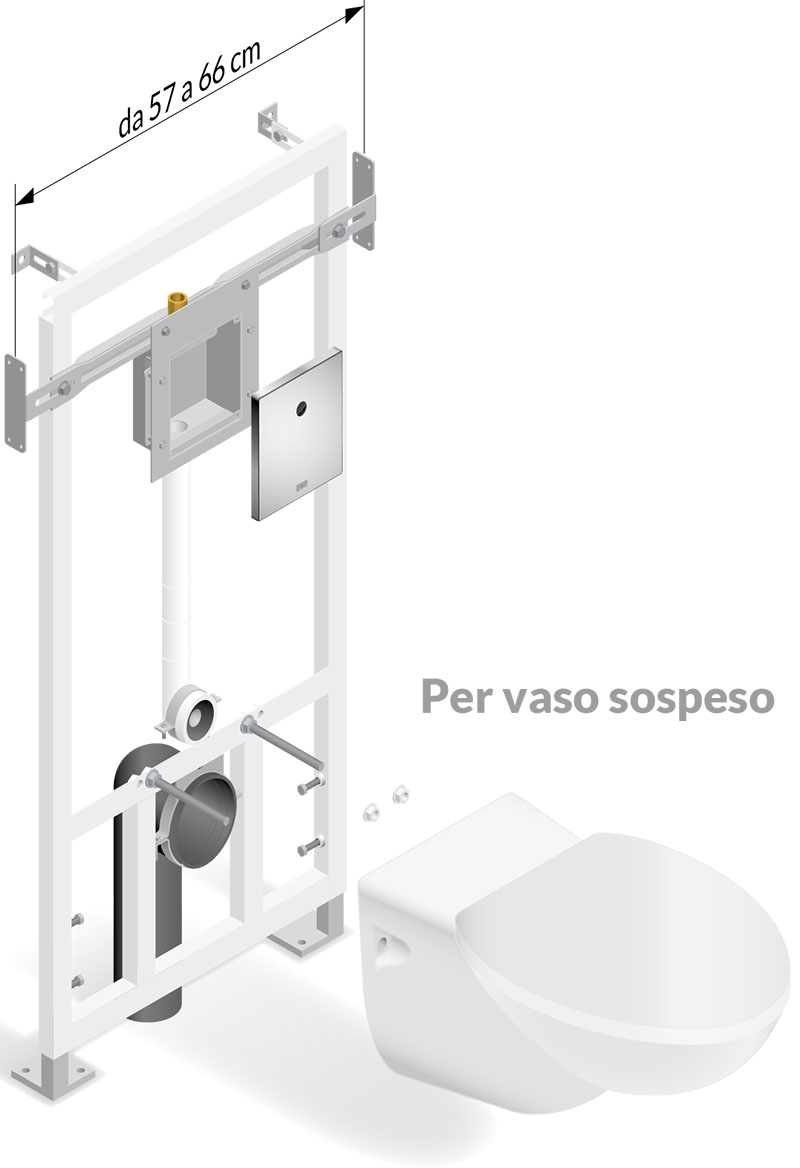

    Metal frame
    for plasterboard walls
    for M Fix FS, M Lux FS, M Fix 36 FS
    * measures in millimeters

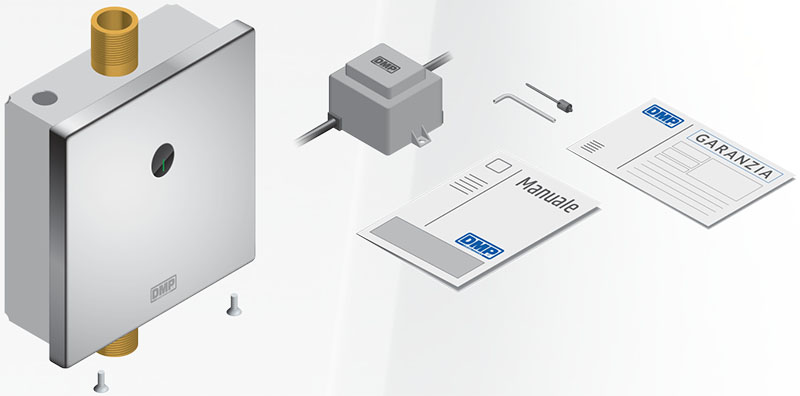

Pack contents
Contents of the package

Contents of the package

Notes
“The water system pipes must be ¾ G minimum with a 90/100 l/ min. water flow at 3 bar for each single unit.
If multiple units are used at the same time, increase the water pipe size adequately, to guarantee a 90/100 l/min. constant flow at 3 bar.”

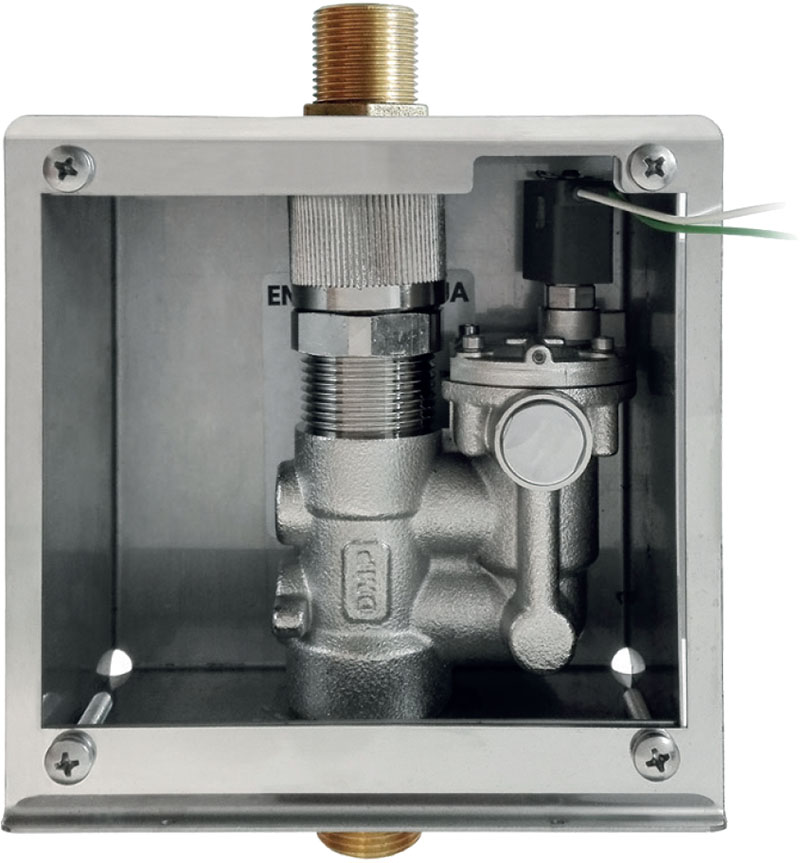

Flussometro

Flussometro

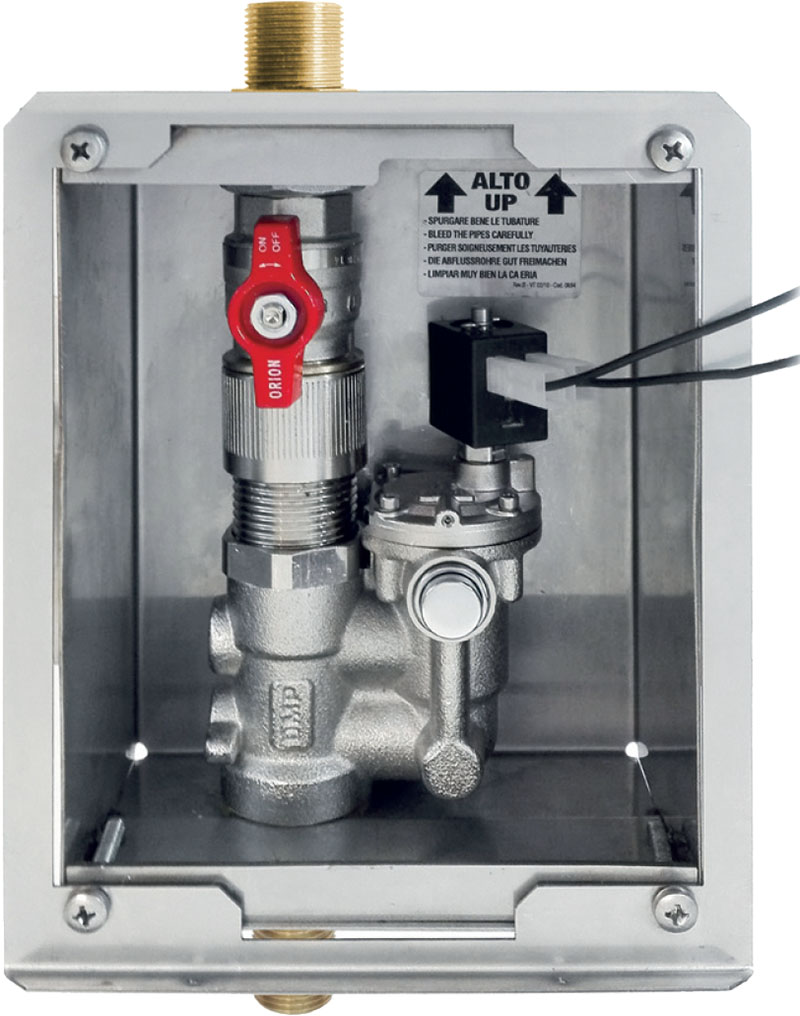

Flussometro with Filter / Stop

Flussometro with inspectionable
built-in filter and stop valve to stop
the water
