General Details
For all models
Electronic tap with anti-scratch and anti-limescale DMP sensor
Screwless plate
4.5V waterproof electronic circuit
Microchip programmed to control all functions Functions optimized using DMP integrated software
Sensor beam adjustable from 5 to 30 cm
Polished stainless steel plate without screws (4mm thick)
Recessed stainless steel box with quick-fit couplings
Anti-flooding automatic stop after 90 seconds
Standard water flow: 6 litres/minute. Optional: 1.9 or 3 litres/minute
Solenoid valve with triple stainless steel anti-contaminant filter
Stop taps with in-built stainless steel filters and non-return valves

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer

Model and feeding

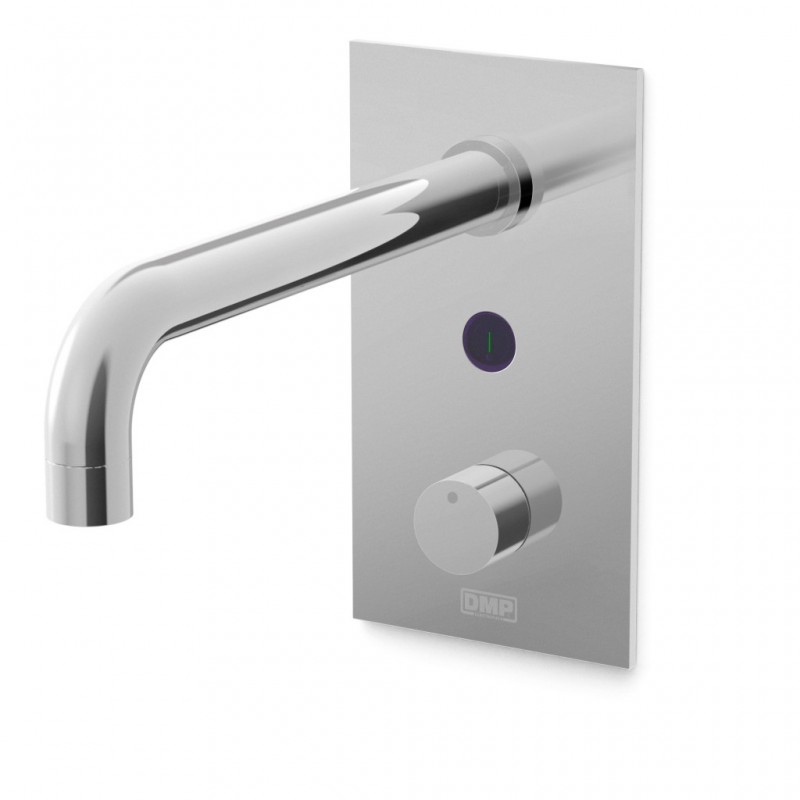

  1. QuadroMix R with hot/cold water mixer

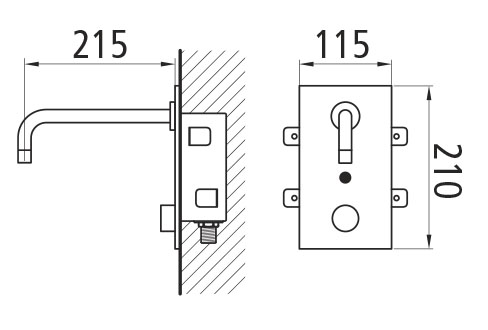

    QuadroMix-R 215
    Power: Electric current o
    battery

    Colour: Polished chrome

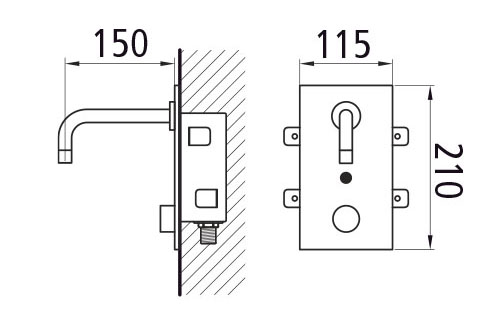

    QuadroMix-R 150
    Power: Electric current o
    battery

    Colour: Polished chrome
  2. Accessories

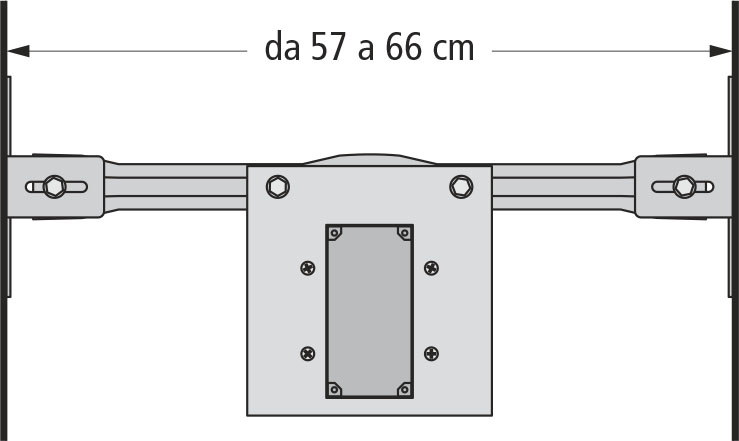

    Metal frame
    for plasterboard walls

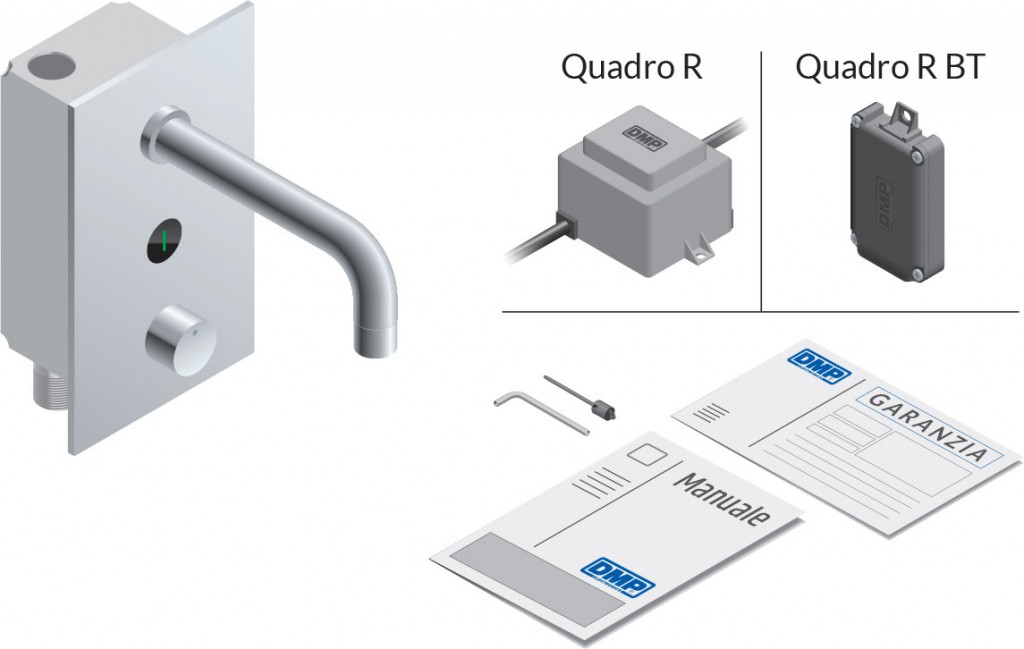

Pack contents
