General Details
For all models
Electronic tap with anti-scratch and anti-limescale DMP sensor
4.5V waterproof electronic circuit
Microchip programmed to control all functions
Functions optimized using DMP integrated software Sensor beam adjustable from 5 to 30 cm
Polished stainless steel plate with vandal-proof concealed screws
Recessed stainless steel box with quick-fit couplings
Anti-flooding automatic stop after 90 seconds
Standard water flow: 6 litres/minute. Optional: 1.9 or 3 litres/minute
Solenoid valve with triple stainless steel anti-contaminant filter
Stop taps with in-built stainless steel filters and non-return valves

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer

Model and feeding

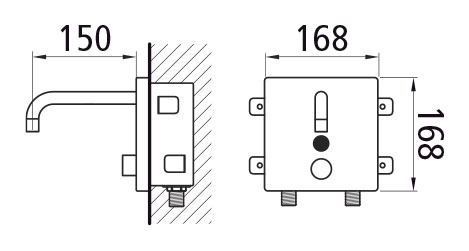

  1. QuadroMix T with hot/cold water mixer
    QuadroMix-T1518
    Power: Electric current o
    battery

    Colours: Polished chrome

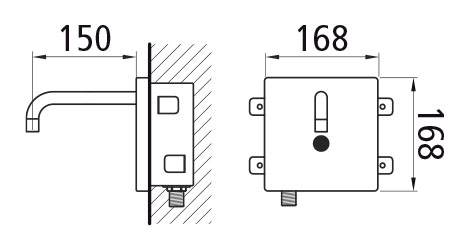

  2. Quadro T for cold or pre-mixed water
    Quadro-T1518
    Power: Electric current o
    battery

    Colours: Polished chrome
  3. Accessories
    Metal frame
    for plasterboard walls
Data Sheet (only for registered users)

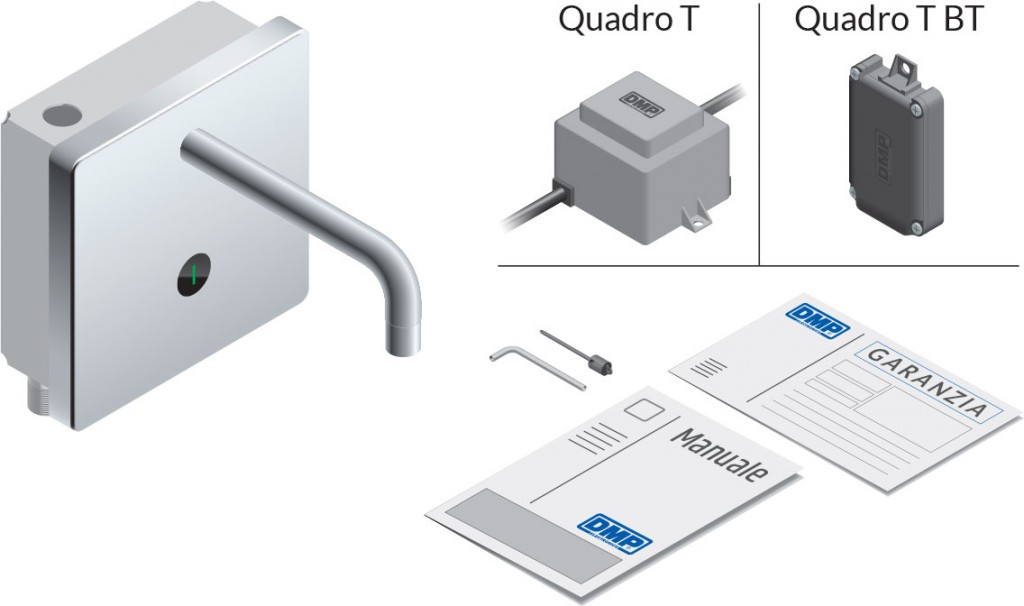

Pack contents
