General Details
For all models
Electronic tap with anti-scratch and anti-limescale DMP sensor
4.5V waterproof electronic circuit
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Sensor beam adjustable from 5 to 30 cm
Polished stainless steel plate with vandal-proof concealed screws
Polished chrome-plated brass spout, fixed or swivel
Seven spout lengths available
External or recessed stainless steel case with quick-fit couplings
Anti-flooding automatic stop after 90 seconds
Standard water flow: 6 litres/minute. Optional: 1.9 or 3 litres/minute
Manual operating device (for 300 models)
Solenoid valve with triple stainless steel anti-contaminant filter
Stop taps with in-built stainless steel filters and non-return valves

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer

Model and feeding

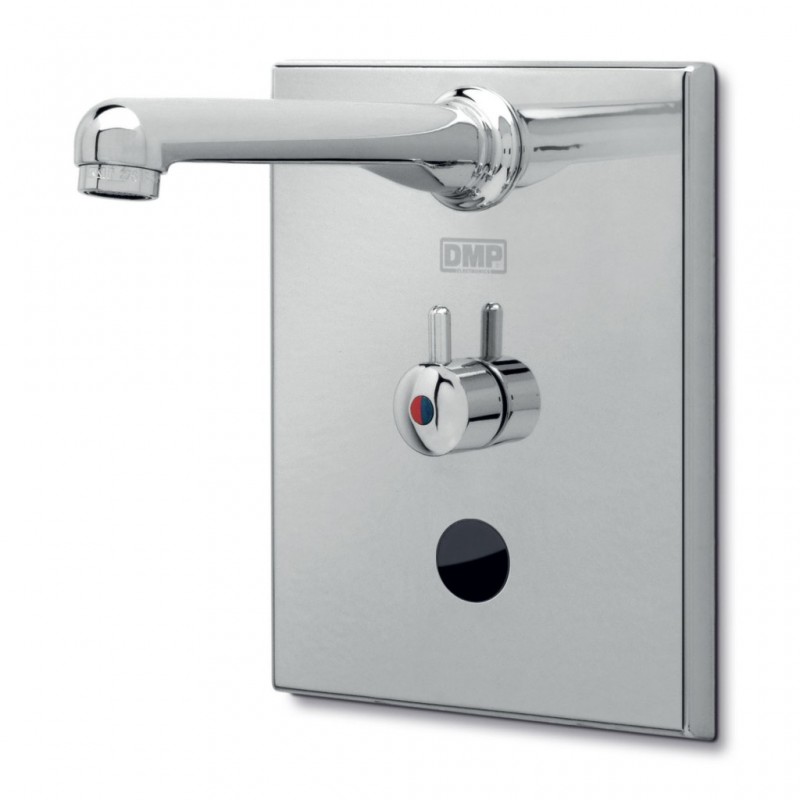

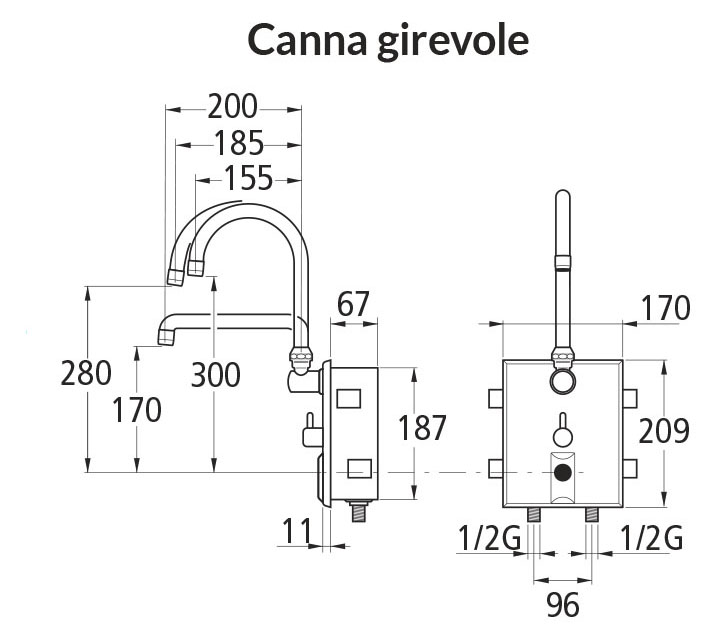

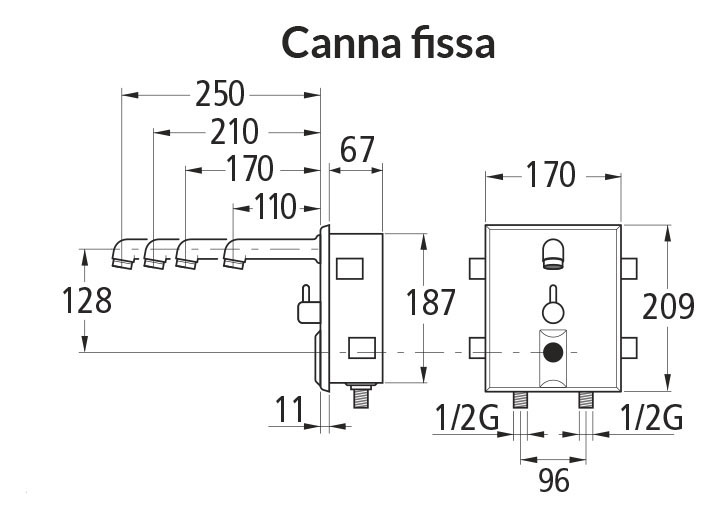

  1. SpeedyMix 200 recessed with hot/cold water mixer
    SpeedyMix 209
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 110mm
    SpeedyMix 216
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 170mm
    SpeedyMix 221
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 210mm
    SpeedyMix 225
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 250mm

    SpeedyMix 215
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 155mm
    SpeedyMix 219
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 185mm
    SpeedyMix 220
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 200mm

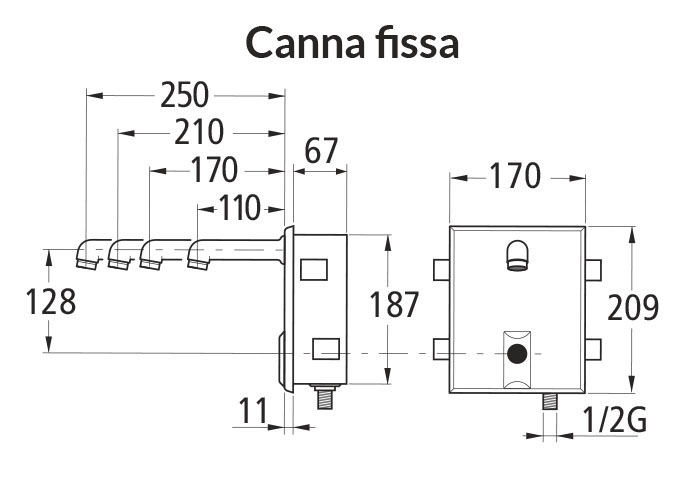

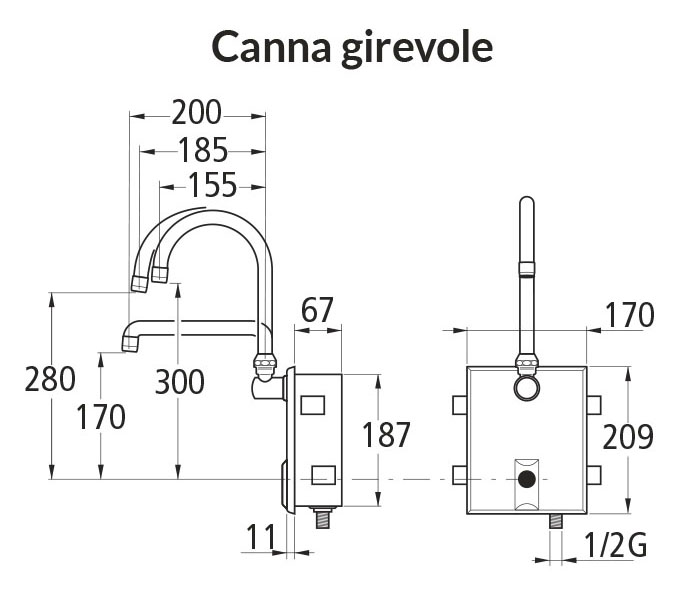

  2. Speedy 200 recessed for cold or pre-mixed water
    Speedy 209
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 110mm
    Speedy 216
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 170mm
    Speedy 221
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 210mm
    Speedy 225
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 250mm

    Speedy 215
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 155mm
    Speedy 219
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 185mm
    Speedy 220
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 200mm

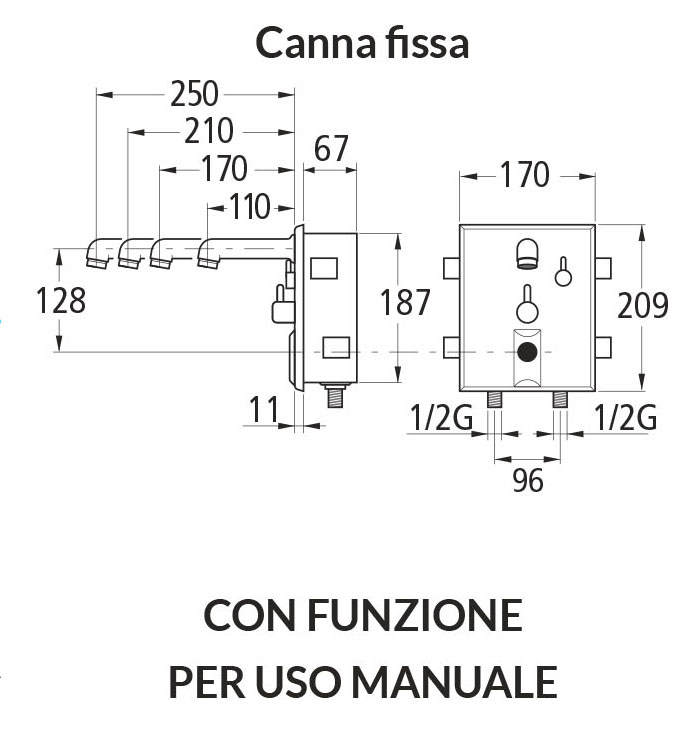

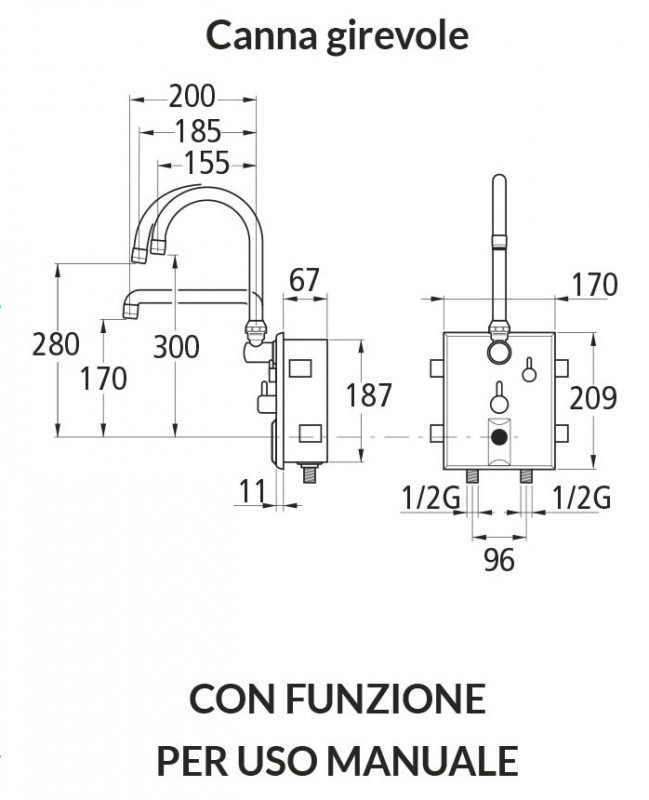

  3. SpeedyMix 300 recessed with hot/cold water mixer
    SpeedyMix 309
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 110mm
    SpeedyMix 316
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 170mm
    SpeedyMix 321
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 210mm
    SpeedyMix 325
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 250mm

    SpeedyMix 315
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 155mm
    SpeedyMix 319
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 185mm
    SpeedyMix 320
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 200mm

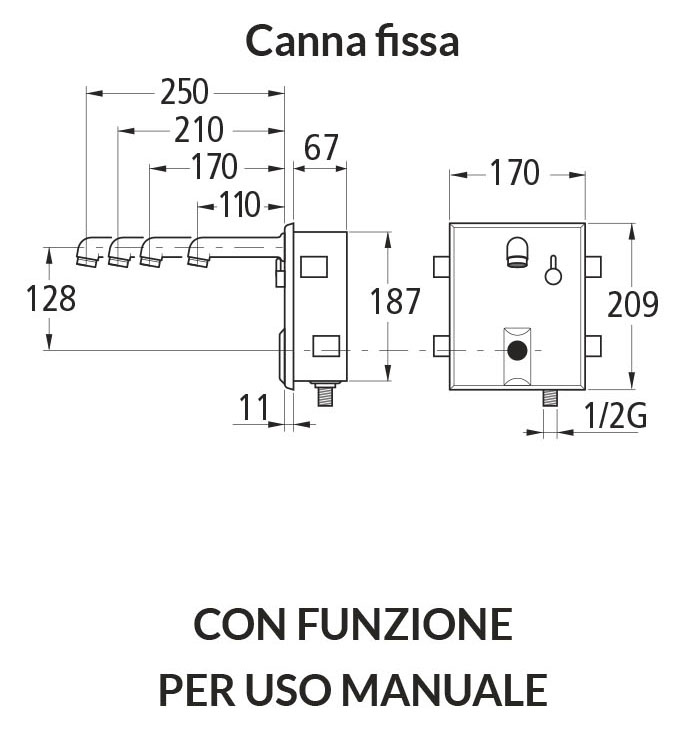

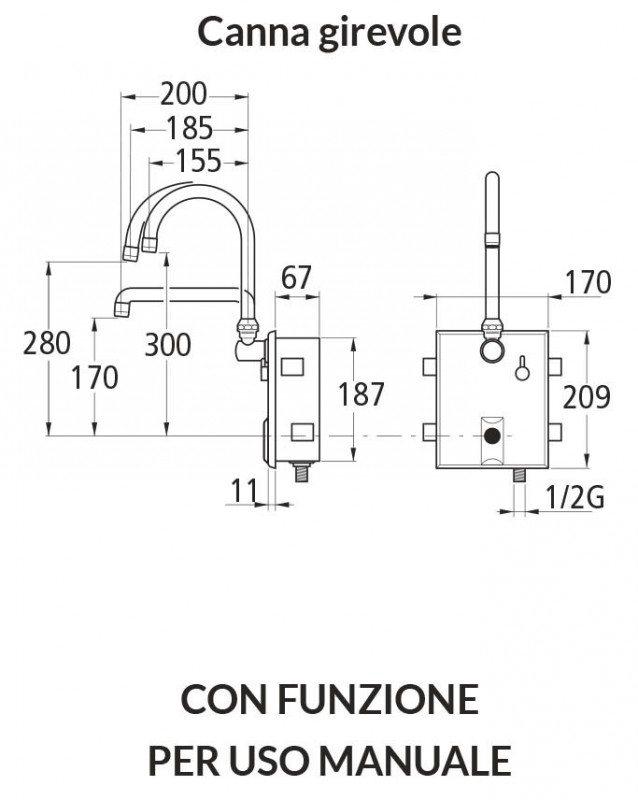

  4. Speedy 300 recessed with hot/cold water mixer
    SpeedyMix 309
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 110mm
    SpeedyMix 316
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 170mm
    SpeedyMix 321
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 210mm
    SpeedyMix 325
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 250mm

    Speedy 315
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 155mm
    Speedy 319
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 185mm
    Speedy 320
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 200mm

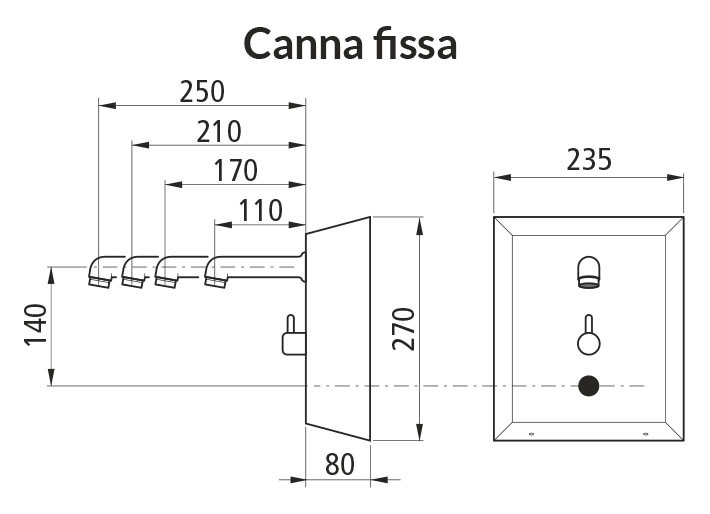

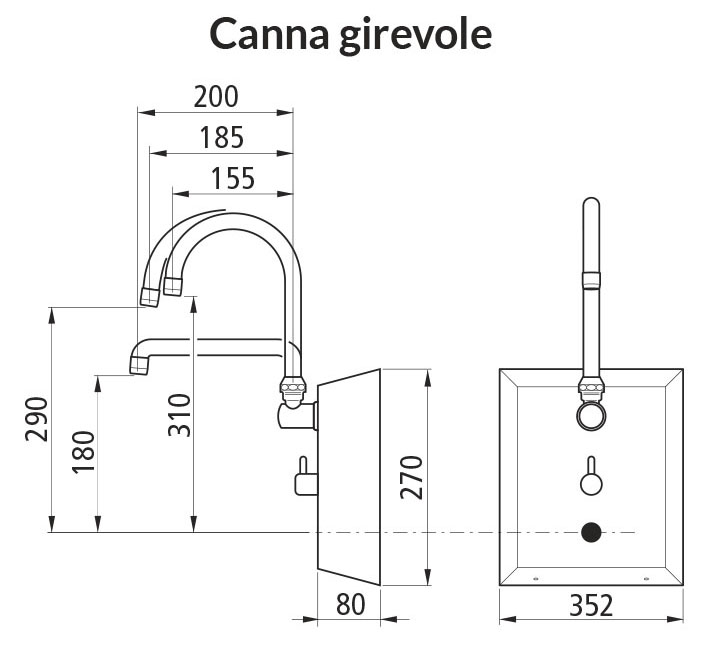

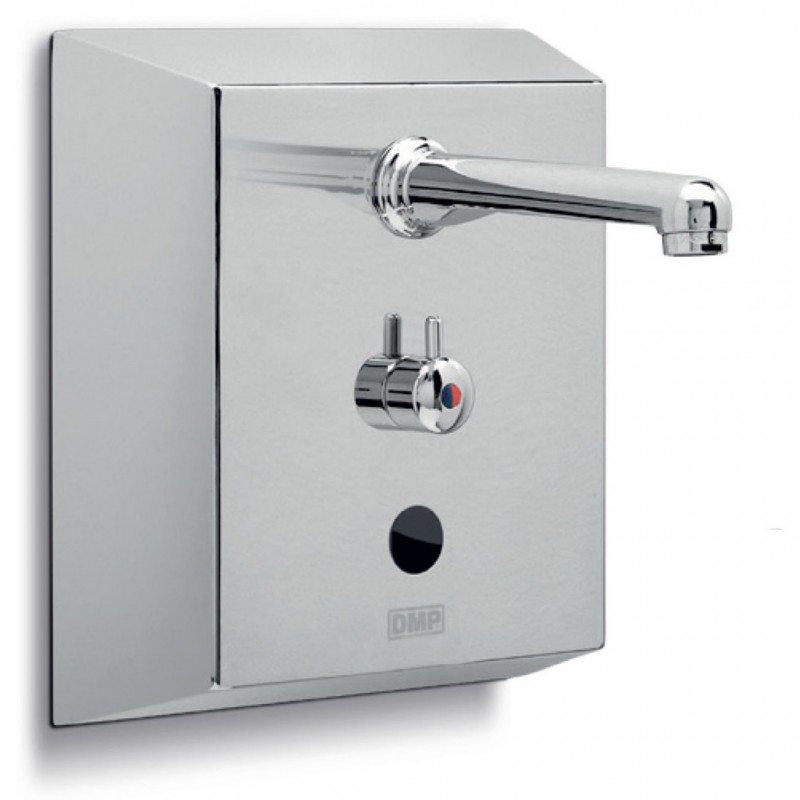

  5. SpeedyMix 200 C with hot/cold water mixer
    SpeedyMix 209-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 110mm
    SpeedyMix 216-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 170mm
    SpeedyMix 221-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 210mm
    SpeedyMix 225-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 250mm

    SpeedyMix 215-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 155mm
    SpeedyMix 219-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 185mm
    SpeedyMix 220-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 200mm

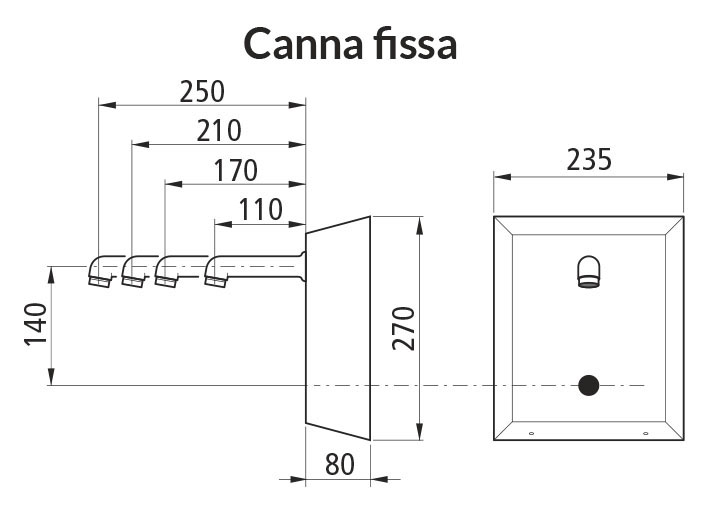

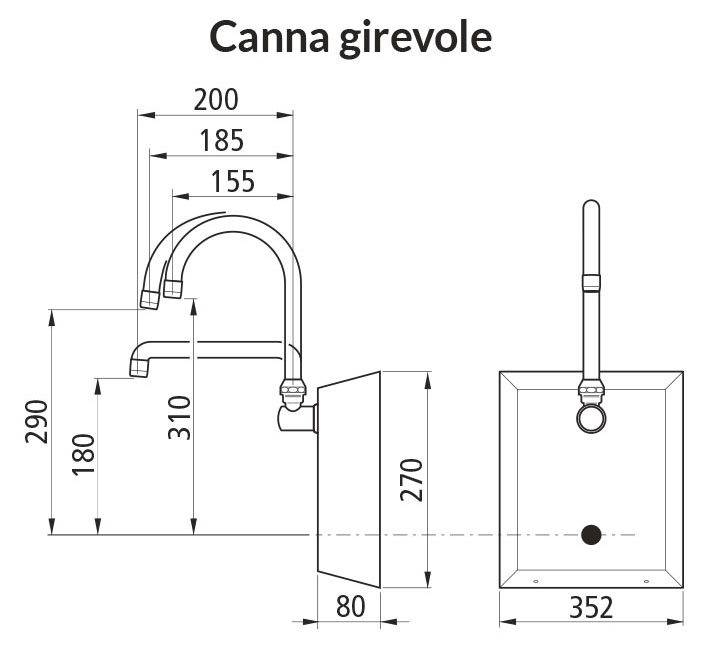

  6. Speedy 200 C for cold or pre-mixed water
    Speedy 209-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 110mm
    Speedy 216-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 170mm
    Speedy 221-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 210mm
    Speedy 225-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 250mm

    Speedy 215-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 155mm
    Speedy 219-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 185mm
    Speedy 220-CPower: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 200mm

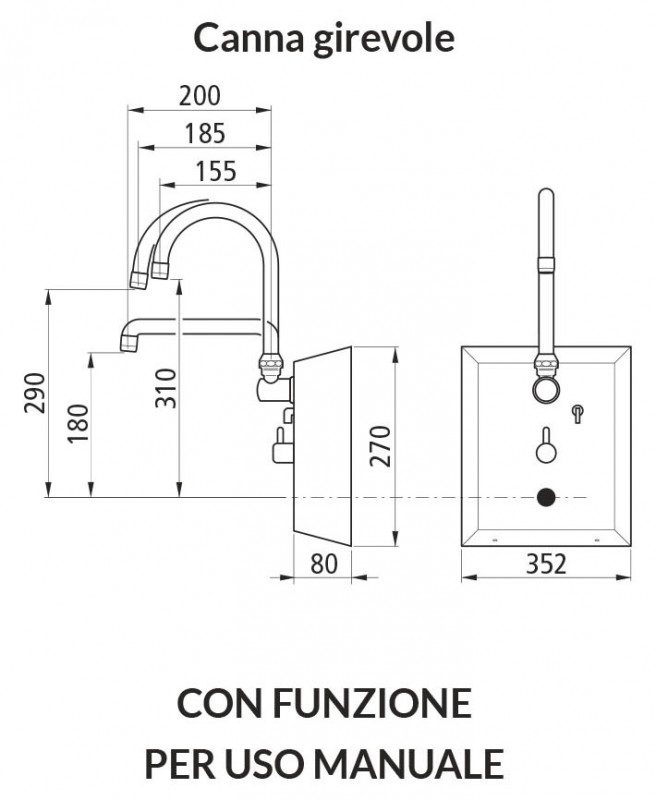

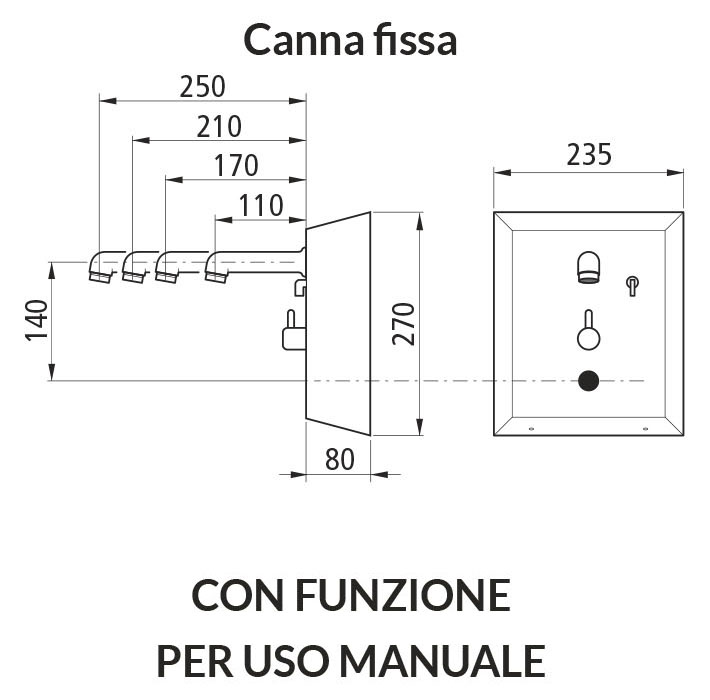

  7. SpeedyMix 300 C with hot/cold water mixer
    SpeedyMix 309-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 110mm
    SpeedyMix 316-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 170mm
    SpeedyMix 321-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 210mm
    SpeedyMix 325-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 250mm

    SpeedyMix 315-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 155mm
    SpeedyMix 319-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 185mm
    SpeedyMix 320-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 200mm

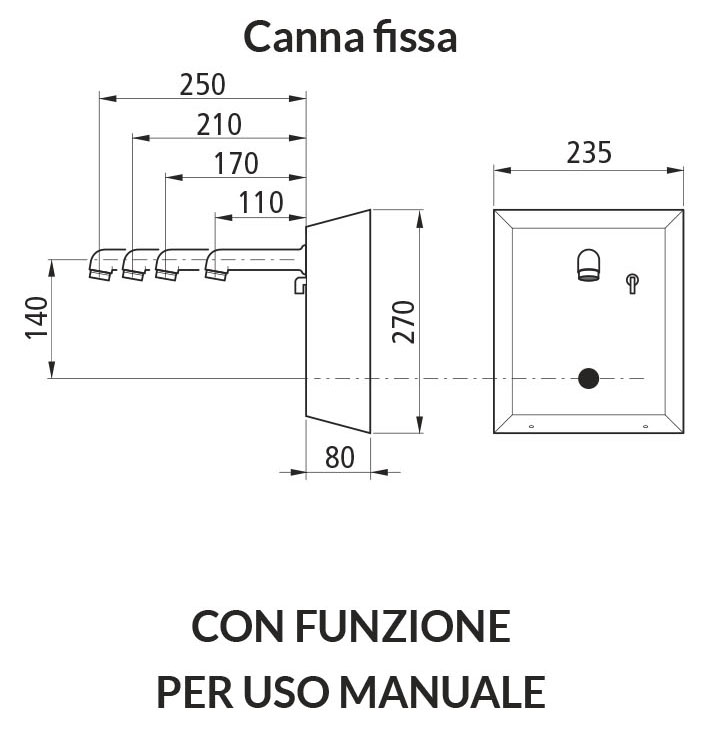

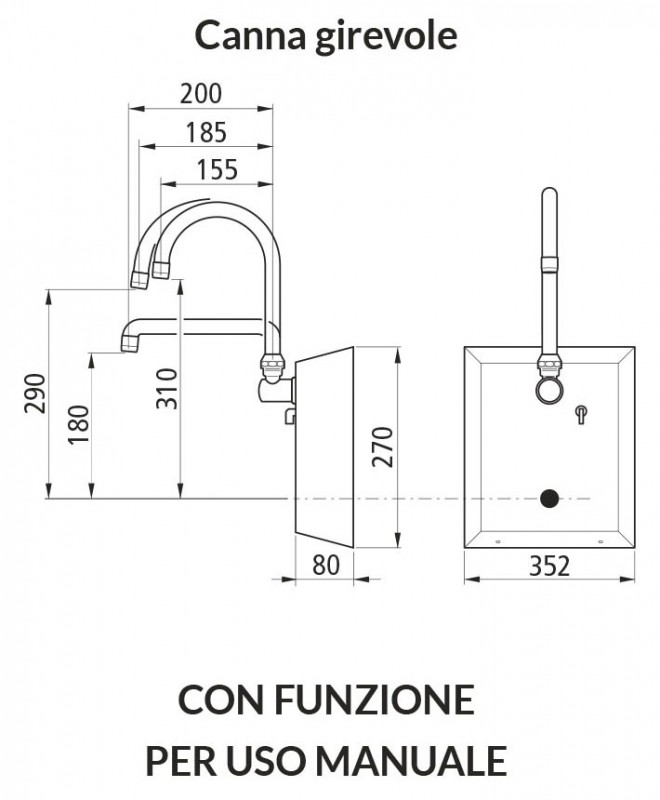

  8. Speedy 300 C for cold or pre-mixed water
    Speedy 309-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 110mm
    Speedy 316-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 170mm
    Speedy 321-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 210mm
    Speedy 325-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Fixed – 250mm

    Speedy 315-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 155mm
    Speedy 319-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 185mm
    Speedy 320-C
    Power: Electric current or battery
    Colour: Polished chrome
    Spout: Swivel – 200mm
  9. Accessories

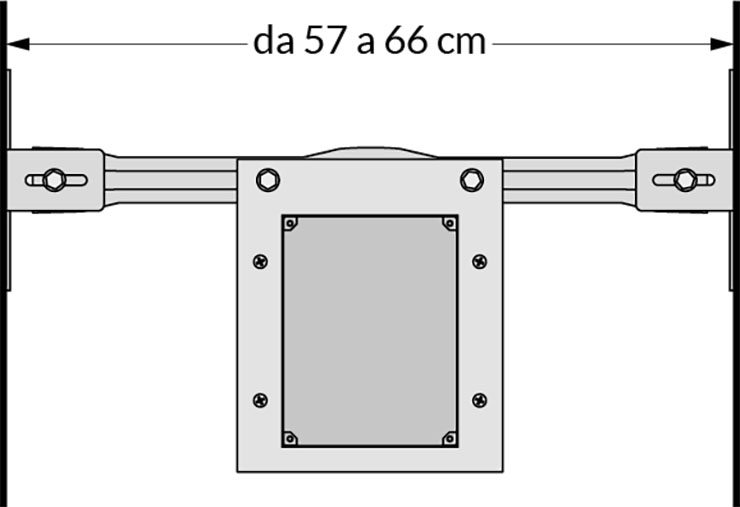

    Metal frame
    for plasterboard walls
Data sheet (only for registered users)

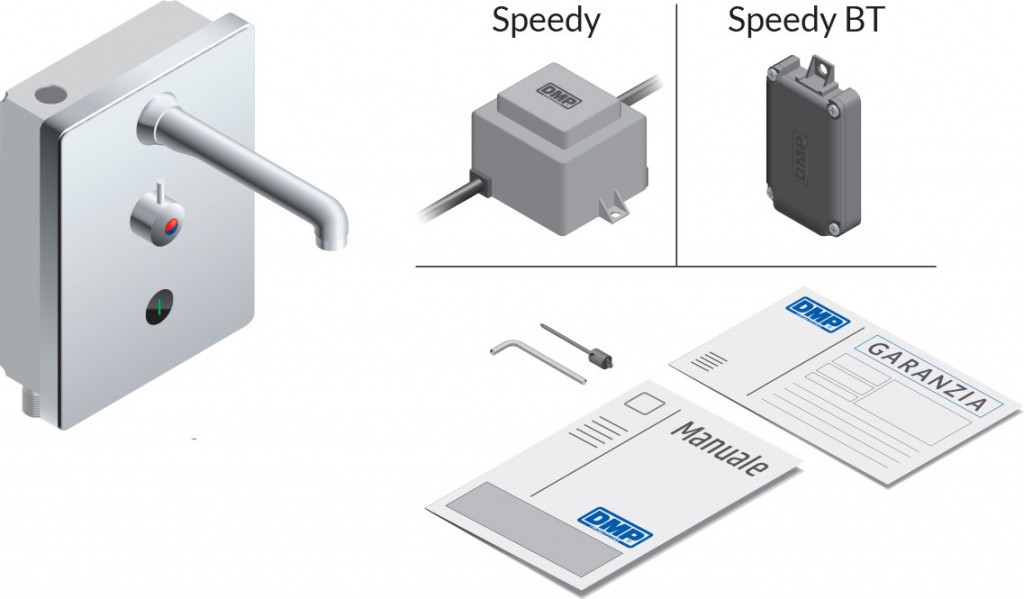

Pack contents
