General Details
Electronic shower with anti-scratch and anti-limescale DMP sensor
Available with standard or on-off sensor
For cold or pre-mixed water
External plate and internal chassis in AISI 304 stainless steel
4.5V waterproof electronic circuit
Sensor beam adjustable from 20 to 80 cm
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Stop taps with non-return valves
0.2mm mesh stainless steel filters

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer

Model and feeding

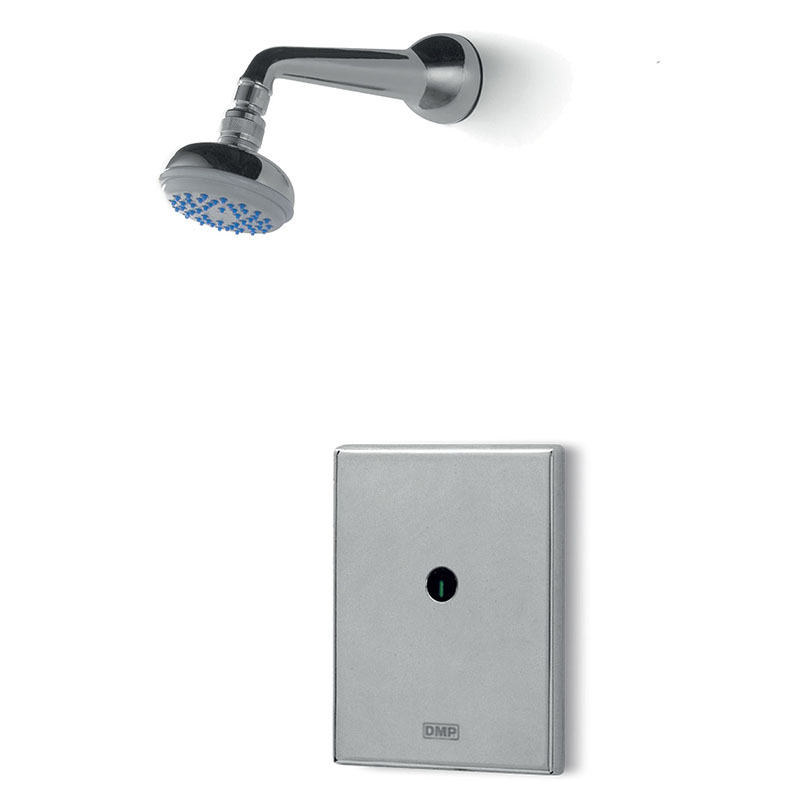

  1. Spin for cold or pre-mixed water - Standard sensor
    Spin 200
    Power: Electricity or battery
    Colours: Polished chrome
    Notes: The water jet is activated when the person approaches the sensor beam
    Sensor beam adjustable from 10 to 60cm

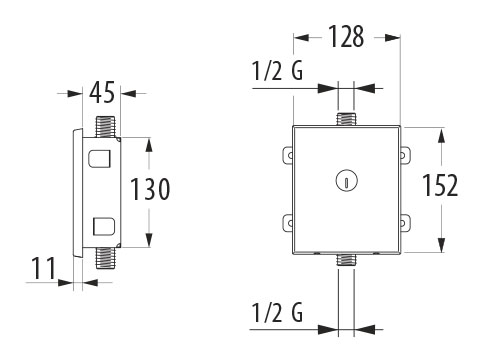

  2. Spin for cold or pre-mixed water - On-Off Sensor
    Spin G
    Power: Electricity or battery
    Colours: Polished chrome, White
    Notes: The water jet is activated when the person approaches the sensor beam
    5cm fixed beam
    Timer programmable from 5 to 80 seconds max
  3. Accessories
    DMP-PL shower head
    Chrome-plated brass arm
    Head in chrome-plated ABS with scale-resistant rubber nozzles
    DMP-MT shower head
    Chrome-plated brass arm
    Head in chrome-plated brass with scale-resistant rubber nozzles

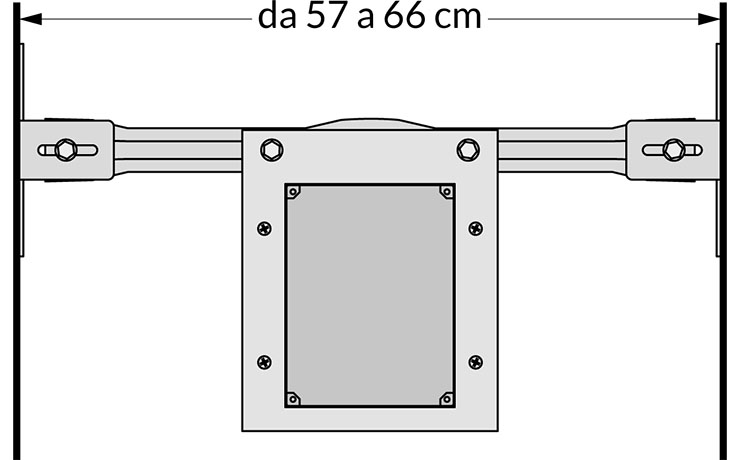

    Metal frame
    for plasterboard walls
    Termomix 3020
    Thermostatic mixing valve
    1/2″ pipe fittings
    Protection at 38°C with release button
    Filters not included
    Built-in non-return valves
    Water flow 20 litres/minute at 3 bar

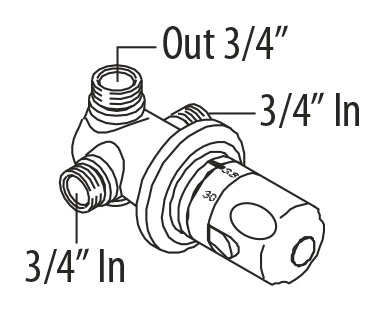

    Termomix 3030
    Thermostatic mixing valve
    3/4″ pipe fittings
    Protection at 38°C with release button
    Filters not included
    Built-in non-return valves
    Water flow 30 litres/minute at 3 bar
Data Sheet (only for registered users)

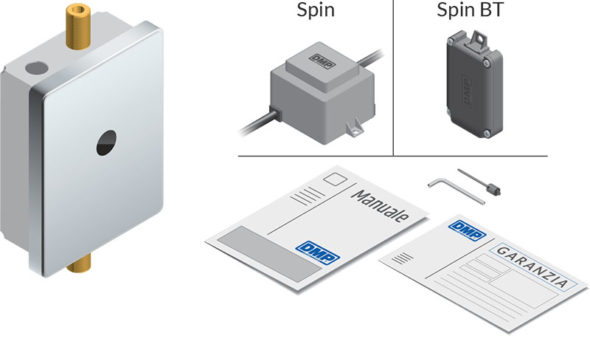

Pack contents
